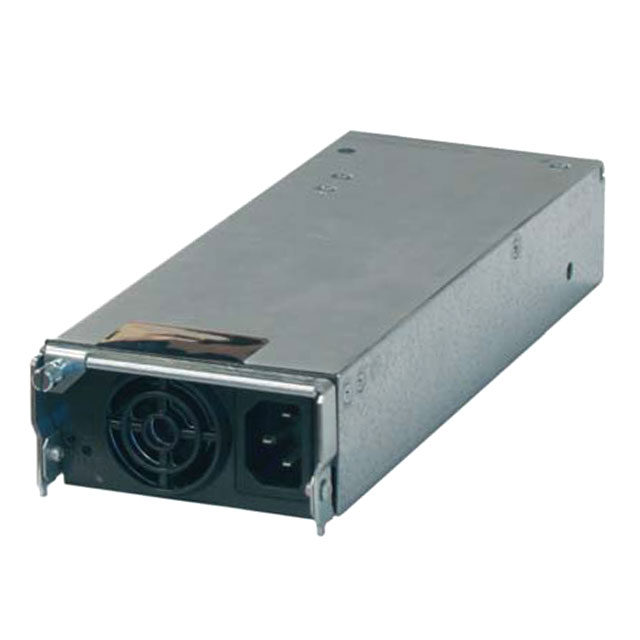

CAR1812FPB-Z01A

Active

OmniOn Power™

AC/DC CONVERTER 12V 850W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 12V 850W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR1812FPB-Z01A

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	71 A
Efficiency	90 %
Features	Standby, Remote Sense, Remote On/Off, I2C Interface, Hot Swappable, PMBus™ PFC, Adjustable Output, 80 Plus® Gold, Load Sharing
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	221.7 mm
Size / Dimension [x]	8.73 "
Size / Dimension [y]	3.38 "
Size / Dimension [y]	85.9 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Isolation	Minimum Load Required	Current - Output 1
OmniOn Power™ CAR1812FPB-Z01A	CE	Front End	3.38 "	1.61 "	221.7 mm	85.9 mm	8.73 "	40.9 mm	ITE (Commercial)	80 Plus® Gold Adjustable Output Hot Swappable I2C Interface Load Sharing PMBus™ PFC Remote On/Off Remote Sense Standby	-10 °C	70 °C	Rack Mount	12 V	1	90 %	3000 V		71 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 630.33

General part information

Front End AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
