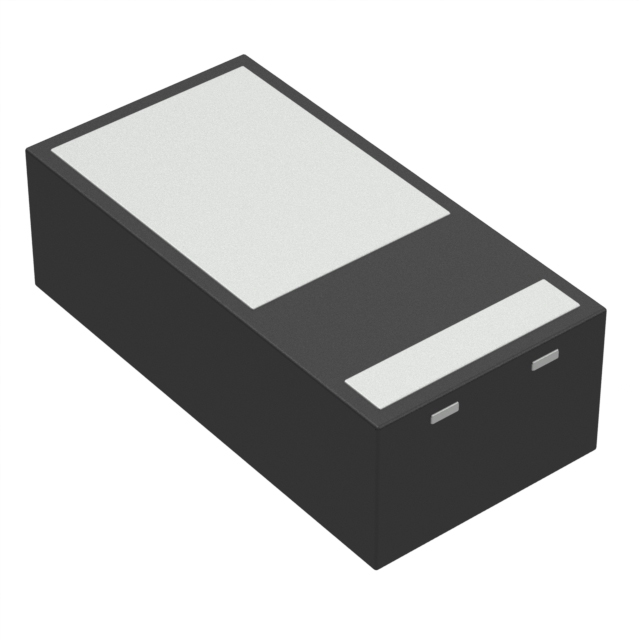

UCLAMP3661P.TNT
ActiveSemtech Corporation
DIODE TVS SINGLE UNI-DIR 36V 1600W 2-PIN SLP T/R
Deep-Dive with AI
Search across all available documentation for this part.
UCLAMP3661P.TNT
ActiveSemtech Corporation
DIODE TVS SINGLE UNI-DIR 36V 1600W 2-PIN SLP T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCLAMP3661P.TNT |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 150 pF |
| Current - Peak Pulse (10/1000µs) | 18 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Power - Peak Pulse | 1600 W |
| Power - Peak Pulse | 1.6 kW |
| Power Line Protection | False |
| Supplier Device Package | 2-SLP1608P |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 37 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 70 V |
| Voltage - Reverse Standoff (Typ) | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.76 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.41 | |||
| 2000 | $ 0.39 | |||
| 5000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.76 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.50 | |||
| 1000 | $ 0.41 | |||
| 2000 | $ 0.39 | |||
| 5000 | $ 0.37 | |||
| Tape & Reel (TR) | 10000 | $ 0.35 | ||
Description
General part information
UCLAMP3661 Series
70V Clamp 18A (8/20µs) Ipp Tvs Diode Surface Mount 2-SLP1608P
Documents
Technical documentation and resources
No documents available
