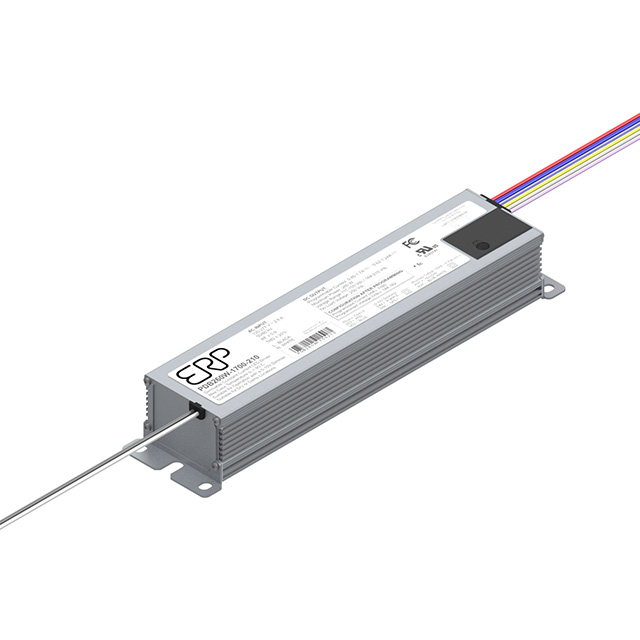

PDB260W-1300-280

Active

ERP Power, LLC

AC/DC LED POWER SUPPLY 260W DUAL

Search across all available documentation for this part.

Active

ERP Power, LLC

AC/DC LED POWER SUPPLY 260W DUAL

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Approval Agency	Operating Temperature	Dimming	Current - Output (Max)	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Input (Max) [Max]	Termination Style	Efficiency	Type
ERP Power, LLC PDB260W-0860-400	IP66	260 W	120 VAC	2	228 V 304 V	300 V 400 V	AC DC Converter	CB CE cULus	194 °F	Analog	650 mA 860 mA	OCP OTP SCP	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Chassis Mount	277 VAC	Wire Leads	93 %	Constant Current
ERP Power, LLC PDB260W-1300-280	IP66	260 W	120 VAC	2	152 V 213 V	200 V 280 V	AC DC Converter	CB CE cULus	194 °F	Analog		OCP OTP SCP	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Chassis Mount	277 VAC	Wire Leads	93 %	Constant Current
ERP Power, LLC PDB260W-1700-210	IP66	260 W	120 VAC	1	114 V 160 V	150 V 210 V	AC DC Converter	CB CE cULus		Analog	1.24 A 1.7 A	OCP OTP SCP	50.8 mm	38.6 mm	240.5 mm	9.47 in	2 in	1.52 in	Chassis Mount	277 VAC	Wire Leads	93 %	Constant Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.3A, 930mA 152 ~ 200V, 213 ~ 280V Constant Current LED Driver AC DC Converter Topology 2 Output

Technical documentation and resources

No documents available
