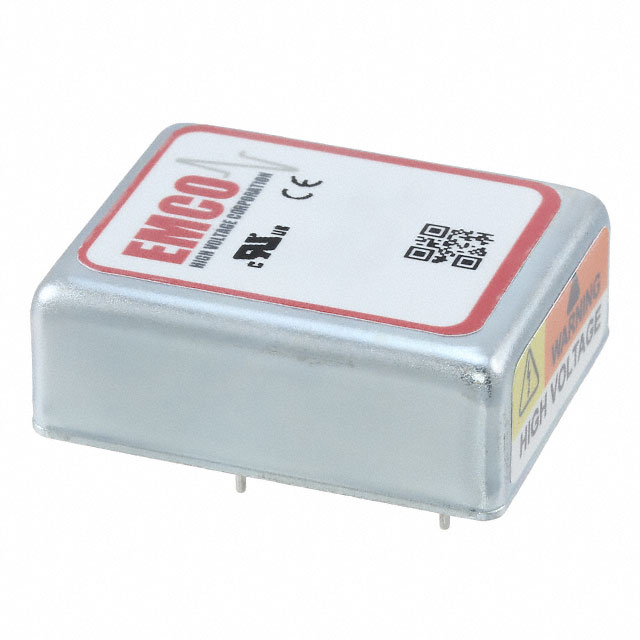

ActiveHIGH VOLTAGE DC/DC CONVERTER, REGULATED, NEGATIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 1 MA
Deep-Dive with AI
Search across all available documentation for this part.
C12N
ActiveHIGH VOLTAGE DC/DC CONVERTER, REGULATED, NEGATIVE OUTPUT, FIXED, ADJUSTABLE, 1 W, 1 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C12N |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 mA |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 5-DIP Module |
| Size / Dimension [x] | 1.4 in |
| Size / Dimension [x] | 35.6 mm |
| Size / Dimension [y] | 1.11 in |
| Size / Dimension [y] | 28.2 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Standard Number | 62368-1 |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 11.5 V |
| Voltage - Output 1 | -1250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C12 Series
C series miniature, regulated high voltage DC to DC converters provide clean and reliable high voltage in a shielded, PC mount package. These modules exhibit very low ripple, noise and EMI/RFI by utilizing a quasi-sinewave oscillator, shielded transformer and excellent filtering techniques. Typical applications include photomultiplier tubes, solid state detectors, electrophoresis, piezo devices, capacitor charging and EO lenses.
