VNHD7012AY
ObsoleteSTMicroelectronics

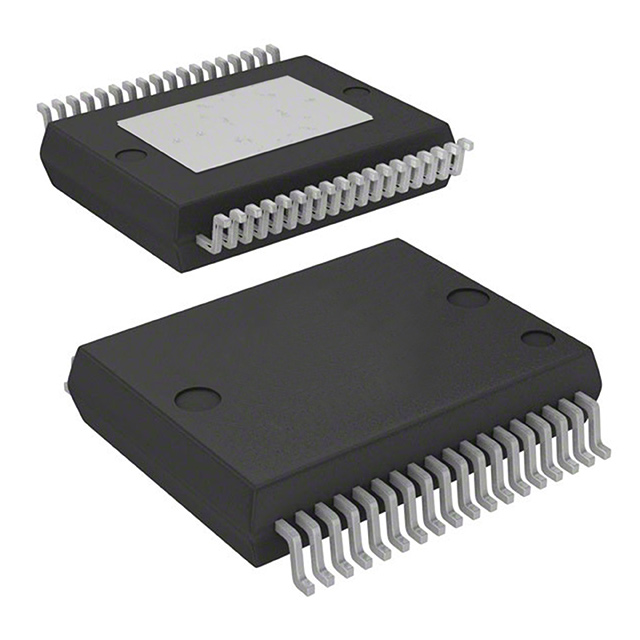

IC MOTOR DRIVER 36POWERSSO
Deep-Dive with AI
Search across all available documentation for this part.
VNHD7012AY
ObsoleteSTMicroelectronics
IC MOTOR DRIVER 36POWERSSO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VNHD7012AY |
|---|---|
| Current - Output | 38 A |
| Function | Driver |
| Grade | Automotive |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |
| Package / Case | 36-PowerFSOP |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Supplier Device Package | PowerSSO-36 |
| Technology | Power MOSFET, CMOS |
| Voltage - Load [Max] | 28 V |
| Voltage - Load [Min] | 4 V |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VNHD7012 Series
Motor Driver CMOS, Power MOSFET PWM PowerSSO-36
