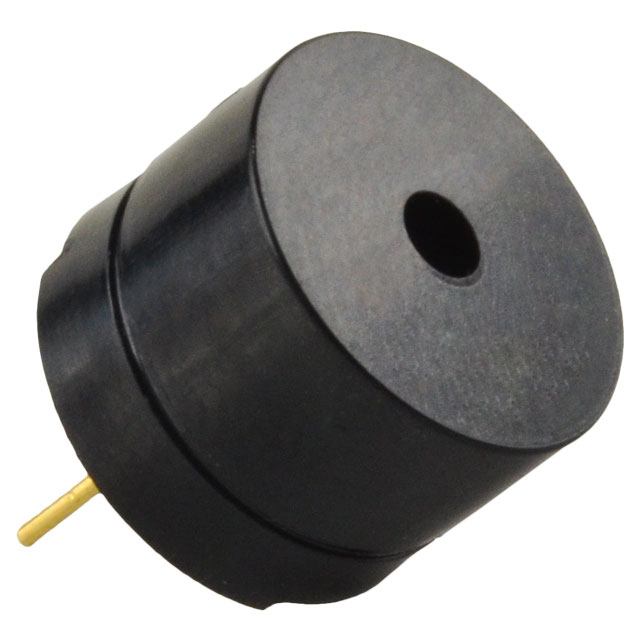

CMT-1285C-015

Active

CUI Devices

BUZZER MAGNETIC 1.5V 12.00MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 1.5V 12.00MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CMT-1285C-015

Current - Supply	35 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.048 kHz
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Sound Pressure Level (SPL)	85 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	1.5 VDC
Voltage Range [Max]	2 V
Voltage Range [Min]	1 V

Part	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Port Location	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Operating Mode	Driver Circuitry	Sound Pressure Level (SPL)	Mounting Type	Termination	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Size / Dimension [diameter]	Size / Dimension [diameter]	Input Type
CUI Devices CMT-1285C-015	2.048 kHz	0.354 in	9 mm	Top	1 V	2 V	1.5 VDC	Single Tone	Externally Driven Transducer	85 dB	Through Hole	PC Pins	Magnetic	-20 C	60 °C	35 mA	12 mm	0.472 in	Zero-Peak Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Magnetic 1.5 V 35mA 2.048kHz 85dB @ 1.5V, 10cm Through Hole PC Pins
