3410.0141.03
ActiveSCHURTER Inc.

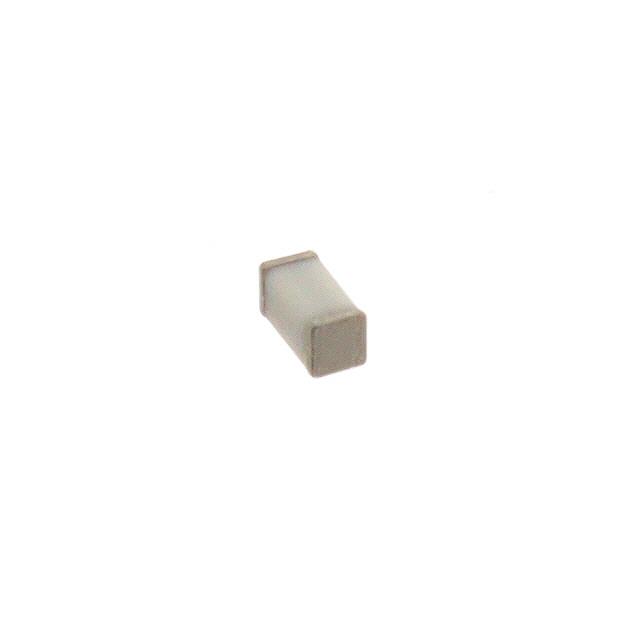

FUSE CHIP VERY FAST ACTING 5A 32V SMD SOLDER PAD 1206 3.2 X 1.55 X 1.55MM CERAMIC T/R CULUS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3410.0141.03
ActiveSCHURTER Inc.
FUSE CHIP VERY FAST ACTING 5A 32V SMD SOLDER PAD 1206 3.2 X 1.55 X 1.55MM CERAMIC T/R CULUS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3410.0141.03 |
|---|---|
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 4 A |
| DC Cold Resistance | 0.0135 Ohms |
| Fuse Type | Board Mount |
| Melting I²t | 0.45 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2-SMD, Square End Block |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.55 mm |
| Size / Dimension [y] | 0.061 in |
| Size / Dimension [z] | 1.55 mm |
| Size / Dimension [z] | 0.061 " |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.32 | |
| 5 | $ 3.21 | |||
| 10 | $ 3.09 | |||
| 50 | $ 2.41 | |||
| 100 | $ 2.02 | |||
| Digi-Reel® | 1 | $ 3.32 | ||
| 5 | $ 3.21 | |||
| 10 | $ 3.09 | |||
| 50 | $ 2.41 | |||
| 100 | $ 2.02 | |||
| Tape & Reel (TR) | 3000 | $ 2.02 | ||
Description
General part information
3410.0141 Series
4 A 63 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
