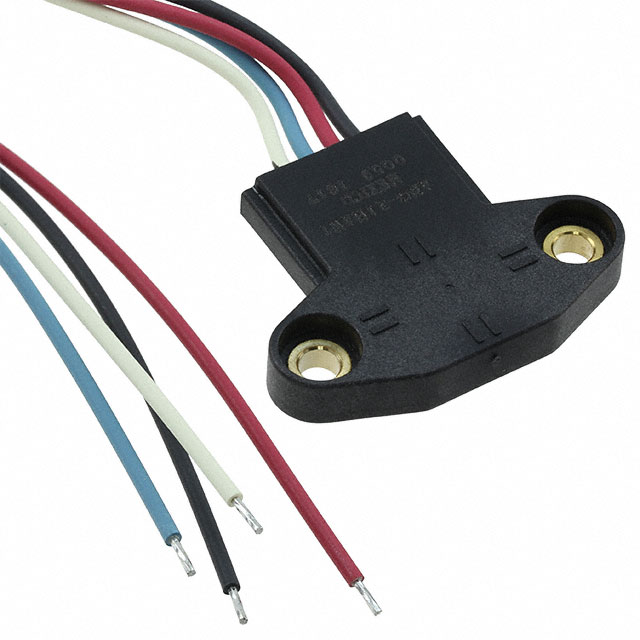

ANG-21HAW1

Active

ZF Electronics

SENSOR ANGLE 360DEG WIRE LEADS

Search across all available documentation for this part.

Active

ZF Electronics

SENSOR ANGLE 360DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	ANG-21HAW1

Actuator Type	External Magnet, Not Included
For Measuring	Angle
Linearity	1 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	Wire Leads

Part	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Linearity	Technology	Output	For Measuring	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Package / Case
ZF Electronics ANG-21HAW1	360 °	0 °	1 %	Hall Effect	Analog Voltage	Angle	Wire Leads	Chassis Mount	140 °C	-40 °C	External Magnet Not Included	Box with Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle External Magnet, Not Included Wire Leads
