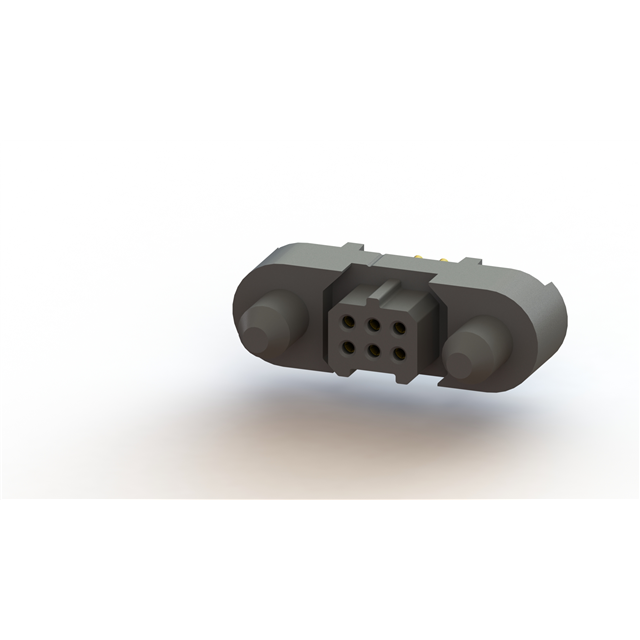

A222Y06R

Active

Nicomatic

FEM. 6POS STRAIGHT TRGH 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

FEM. 6POS STRAIGHT TRGH 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A222Y06R

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Guide Pin, Mating Guide
Insulation Color	Black
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	600 VAC

Part	Material Flammability Rating	Number of Positions	Features	Current Rating (Amps)	Contact Finish - Post	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Shape	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Fastening Type
Nicomatic A222Y06V16	UL94 V-0	6	Jackscrews Mating Flange Mounting Flange Polarizing Key	2.5 A	Gold	2	0.039 "	1 mm	Receptacle	Circular	Through Hole	Female Socket	0.039 in	1 mm	Copper Alloy	0.122 "	3.1 mm	Solder	600 VAC	-65 ░C	200 °C	0.15 µm	5.9 µin	Gold	Liquid Crystal Polymer (LCP)	0.173 in	4.4 mm	Black	0.15 µm	5.9 µin	All
Nicomatic A222Y06R	UL94 V-0	6	Guide Pin Mating Guide	2.5 A	Gold	2	0.039 "	1 mm	Receptacle	Circular	Through Hole	Female Socket	0.039 in	1 mm	Copper Alloy	0.122 "	3.1 mm	Solder	600 VAC	-65 ░C	200 °C	0.15 µm	5.9 µin	Gold	Liquid Crystal Polymer (LCP)	0.173 in	4.4 mm	Black	0.15 µm	5.9 µin	All	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.039" (1.00mm) Through Hole Gold
