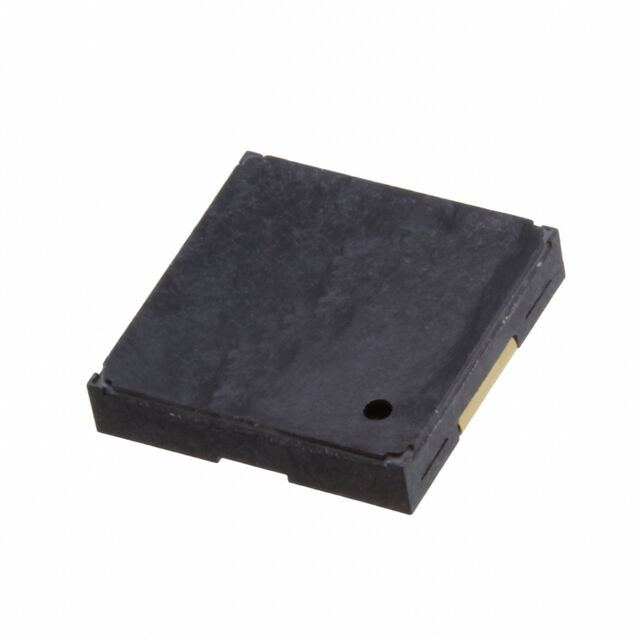

PKMCS0909E4000-R1
ActiveMurata Power Solutions Inc.
BUZZER, EXTERNAL DRIVE, 72DB, 4KHZ, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
PKMCS0909E4000-R1
ActiveMurata Power Solutions Inc.
BUZZER, EXTERNAL DRIVE, 72DB, 4KHZ, SMD ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PKMCS0909E4000-R1 |
|---|---|
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4 kHz |
| Height - Seated (Max) [Max] [z] | 1.9 mm |
| Height - Seated (Max) [Max] [z] | 0.075 in |
| Input Type | Zero-Peak Signal |
| Mounting Type | Surface Mount |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Port Location | Side |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [x] | 0.354 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [y] | 0.354 in |
| Sound Pressure Level (SPL) | 65 dB |
| Technology | Piezo |
| Termination | Solder Pads |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 12.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| 10 | $ 0.76 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.76 | |||
| 25 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.63 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 2000 | $ 0.51 | ||
| 6000 | $ 0.48 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.49 | |
| 4000 | $ 0.45 | |||
| 8000 | $ 0.40 | |||
| 12000 | $ 0.39 | |||
| 20000 | $ 0.38 | |||
Description
General part information
PKMCS Series
Buzzers Transducer, Externally Driven Piezo 1.5 V 4kHz 65dB @ 1.5V, 10cm Surface Mount Solder Pads
