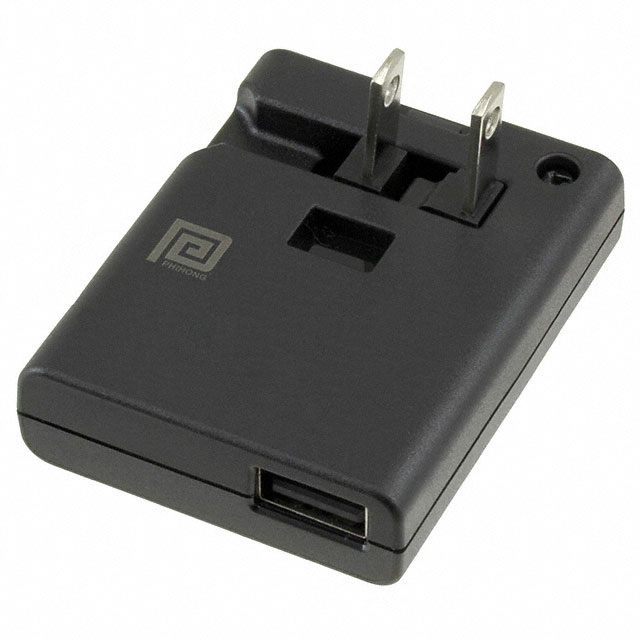

PSA05F-050QAL6D

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	PSA05F-050QAL6D

Applications	ITE (Commercial)
Approval Agency	CE, cULus, C-Tick
Current - Output (Max) [Max]	1 A
Efficiency	Level VI, CoC Tier 1
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P, Multi-Blade
Input Type	Multi-Blade, Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.36 in
Size / Dimension [y]	1.85 "
Size / Dimension [y]	47 mm
Size / Dimension [z]	0.59 in
Size / Dimension [z]	15 mm
Voltage - Output	5 V
Weight	38.56 g
Weight	0.085 lb

Part	Voltage - Output	Current - Output (Max) [Max]	Input Connector	Applications	Weight	Weight	Approval Agency	Efficiency	Form	Power (Watts)	Region Utilized	Input Type	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
Phihong USA PSA05F-050QAL6D	5 V	1 A	NEMA 1-15P Multi-Blade	ITE (Commercial)	38.56 g	0.085 lb	C-Tick CE cULus	CoC Tier 1 Level VI	Wall Mount (Class II)	5 W	North America	Fixed Blade Multi-Blade	75 mW	0 °C	45 °C	60 mm	1.85 "	2.36 in	0.59 in	15 mm	47 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
