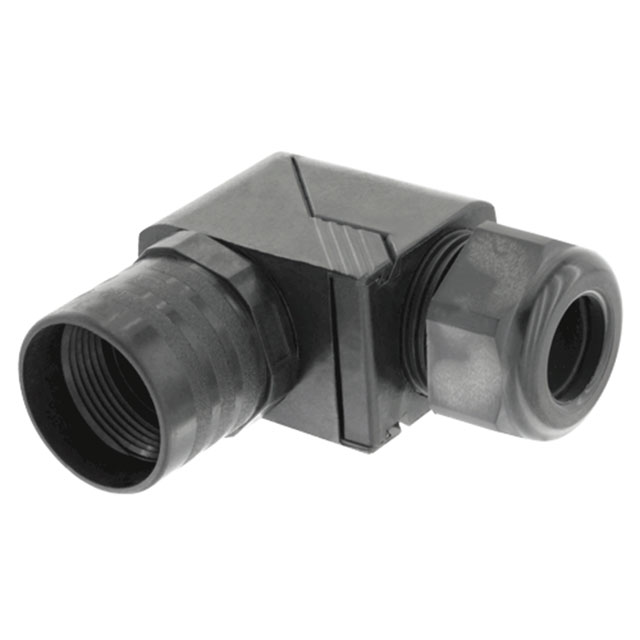

CL103051

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ3 BLACK PG21

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL SZ3 BLACK PG21

Technical Specifications

Parameters and characteristics for this part

Specification	CL103051

Cable Exit	90 °
Cable Opening [custom]	0.51 in, 0.71 in
Cable Opening [custom]	12.95 mm, 18.03 mm
Color	Black
Features	Sealing Gland
For Use With/Related Products	Clipper Sealed Connectors
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Shell Size - Insert	3
Thread Size	PG21
Type	Backshell

Part	Cable Opening [custom]	Cable Opening [custom]	Thread Size	Material	Color	For Use With/Related Products	Ingress Protection	Material Flammability Rating	Cable Exit	Shell Size - Insert	Features	Accessory Type	Type	Cable Opening [diameter]	Cable Opening [diameter]
Souriau-Sunbank by Eaton CL103021	0.51 in 0.71 in	12.95 mm 18.03 mm	PG21	Thermoplastic	Black	Clipper Sealed Connectors	IP68 - Dust Tight Waterproof	UL94 V-0	180 °	3
Souriau-Sunbank by Eaton CL103000						Commercial Backshell				3	Unsealed	PG Adapter
Souriau-Sunbank by Eaton CL103051	0.51 in 0.71 in	12.95 mm 18.03 mm	PG21	Thermoplastic	Black	Clipper Sealed Connectors	IP67 - Dust Tight Waterproof	UL94 V-0	90 °	3	Sealing Gland		Backshell
Souriau-Sunbank by Eaton CL103030			PG21	Thermoplastic	Black	Clipper Unsealed Connectors	IP40	UL94 V-0	180 °	3	Clamp Screws		Cable Clamp	7.87 mm 21 mm	0.31 in 0.827 in
Souriau-Sunbank by Eaton CL103040	0.91 in	23.11 mm	PG21	Thermoplastic	Black	Flexible Conduit Systems	IP40	UL94 V-0	180 °	3	Gasket		Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 65.01

General part information

Black Connector Backshell PG21 3

Technical documentation and resources
