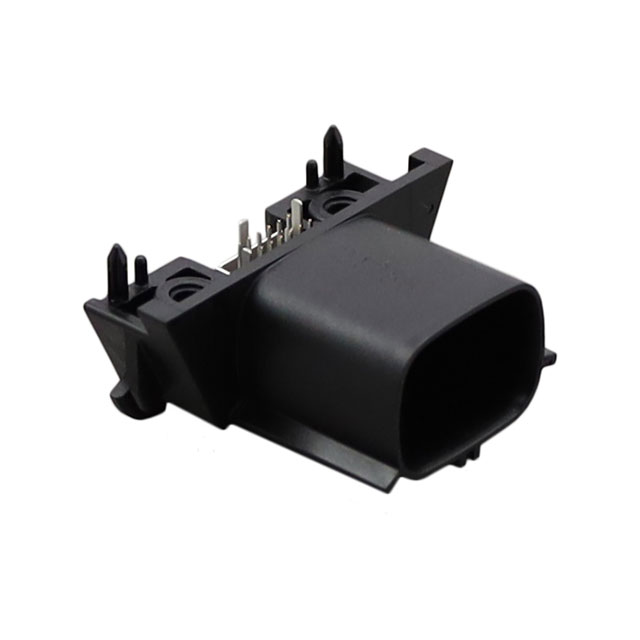

0348570506

Active

Molex

CONN HDR 12P 0.05 GOLD EDGE MNT

Search across all available documentation for this part.

Active

Molex

CONN HDR 12P 0.05 GOLD EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	0348570506

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Finish Thickness - Post	2.5 µm
Contact Finish Thickness - Post	98.4 µin
Contact Material	Copper Alloy
Contact Type	Female Socket
Current Rating (Amps)	1.5 A
Fastening Type	Locking Ramp
Features	Board Guide, Sealed
Insulation Color	Black
Insulation Height	11.5 mm
Insulation Height	0.453 in
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	36 VDC

Part	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Connector Type	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Termination	Style	Features	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Color	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Material
Molex 0348570606
Molex 0348570506	12	Locking Ramp	-40 °C	105 ░C	16 Áin	0.41 Ám	Female Socket	11.5 mm	0.453 in	2.5 µm	98.4 µin	Board Edge Right Angle Through Hole	Header	2	All	Tin	Solder	Board to Cable/Wire	Board Guide Sealed	1.5 A	0.05 in	1.27 mm	Gold	Black	36 VDC	0.05 in	1.27 mm	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Header Connector 0.050" (1.27mm) Board Edge, Through Hole, Right Angle Gold
