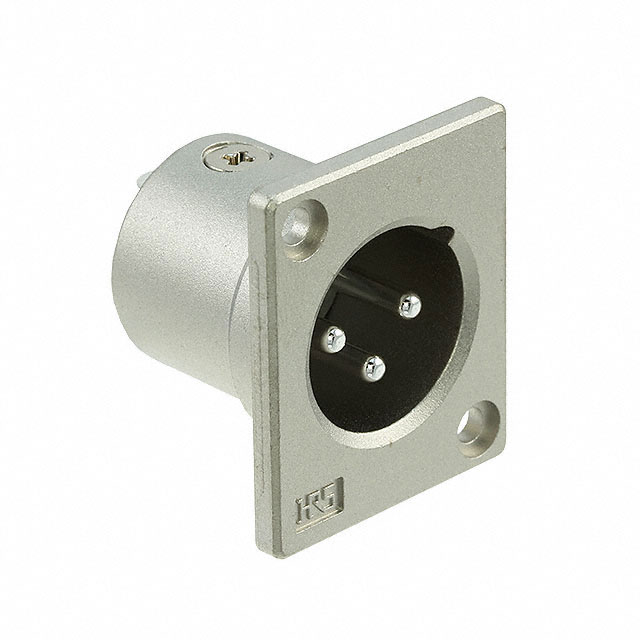

HA16RD-3P(76)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 3P SILV SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 3P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HA16RD-3P(76)

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Features	Ground
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum or Zinc Alloy
Shell Size - Insert	16
Shielding	Shielded
Voltage Rating	130 VAC, 180 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Orientation	Mounting Feature	Primary Material	Features	Color	Shielding	Shell Finish	Contact Finish - Mating	Shell Material	Contact Material	Connector Type	Current Rating (Amps)	Material Flammability Rating	Shell Size - Insert	Voltage Rating	Number of Positions
Hirose Electric USA, Inc. HA16RD-3P(76)	70 °C	-25 °C	Push-Pull	Keyed	Flange	Metal	Ground	Silver	Shielded	Nickel	Silver	Aluminum or Zinc Alloy	Copper Alloy	Male Pins Receptacle	15 A	UL94 V-0	16	130 VAC 180 VDC
Hirose Electric USA, Inc. HA16RD-4P(76)	70 °C	-25 °C	Push-Pull	Keyed	Flange	Metal	Ground	Silver	Shielded	Nickel	Silver	Aluminum or Zinc Alloy	Copper Alloy	Male Pins Receptacle	5 A	UL94 V-0	16	130 VAC 180 VDC	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
