M300-MC11005M1-0300L

Active

Harwin Inc.

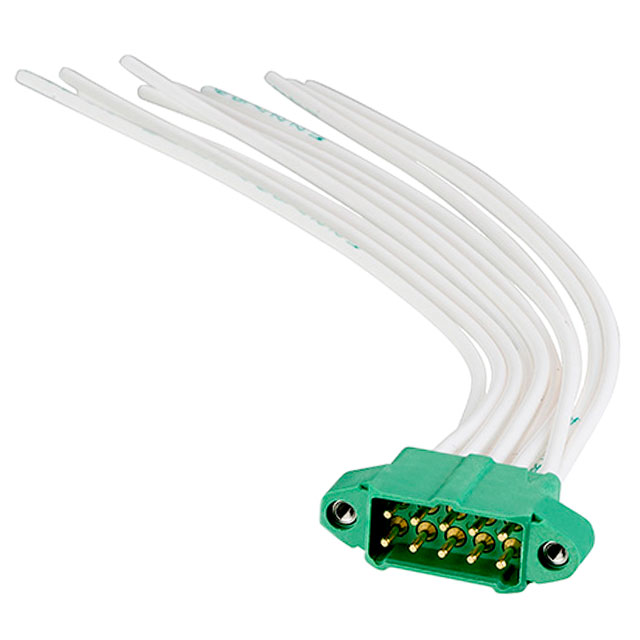

5+5 POS. MALE DIL 18AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Search across all available documentation for this part.

Active

Harwin Inc.

5+5 POS. MALE DIL 18AWG CABLE ASSEMBLY, 300MM, SINGLE-END, JACKSCREWS

Technical Specifications

Parameters and characteristics for this part

Specification	M300-MC11005M1-0300L

Cable Termination	Crimp
Connector Type	Plug to Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Features	Screw Lock, Polarizing Key
Length [x]	0.984 '
Length [x]	11.81 "
Length [x]	300 mm
Number of Positions	10
Number of Rows	2
Pitch - Connector	0.118 in
Pitch - Connector	3 mm
Shielding	Unshielded

Part	Length [x]	Length [x]	Length [x]	Number of Positions	Cable Termination	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length
Harwin Inc. M300-MC10605M1-0300L	0.984 '	11.81 "	300 mm	6	Crimp	Plug to Individual Wire Leads	2	0.118 in	3 mm	Unshielded	Gold	Polarizing Key Screw Lock	5.9 µin	0.15 µm
Harwin Inc. M300-MC10605M1-0150L				6	Crimp	Plug to Individual Wire Leads	2	0.118 in	3 mm	Unshielded	Gold	Polarizing Key Screw Lock	5.9 µin	0.15 µm	150 mm	5.91 "	0.492 ft
Harwin Inc. M300-MC11005M1-0150L				10	Crimp	Plug to Individual Wire Leads	2	0.118 in	3 mm	Unshielded	Gold	Polarizing Key Screw Lock	5.9 µin	0.15 µm	150 mm	5.91 "	0.492 ft
Harwin Inc. M300-MC11005M1-0300L	0.984 '	11.81 "	300 mm	10	Crimp	Plug to Individual Wire Leads	2	0.118 in	3 mm	Unshielded	Gold	Polarizing Key Screw Lock	5.9 µin	0.15 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular Plug to Individual Wire Leads 0.984' (300.00mm, 11.81")
