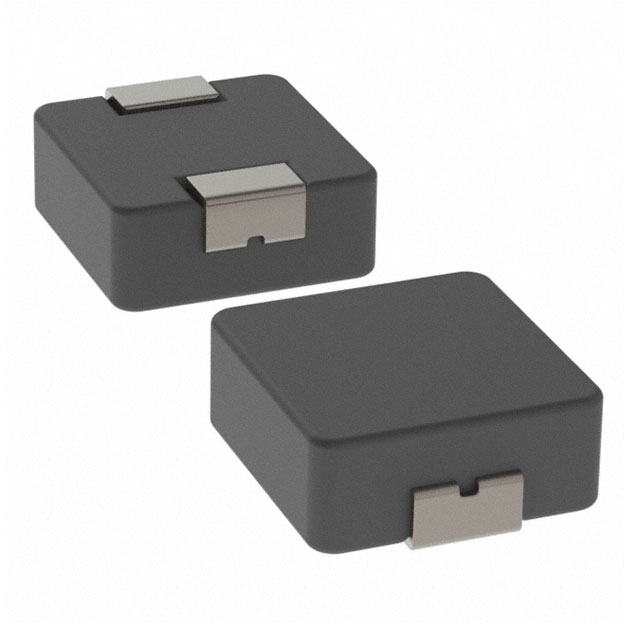

PA4547.103NLT
ActivePulse Electronics
POWER INDUCTORS - SMD 10UH 1.2A 1.2MM 20% SMT
Deep-Dive with AI
Search across all available documentation for this part.
PA4547.103NLT
ActivePulse Electronics
POWER INDUCTORS - SMD 10UH 1.2A 1.2MM 20% SMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PA4547.103NLT |
|---|---|
| Current - Saturation (Isat) | 1.6 A |
| Current Rating (Amps) | 1.2 A |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 1.08 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.92 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 1.08 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.92 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.61 | |||
| Tape & Reel (TR) | 3000 | $ 0.59 | ||
| 6000 | $ 0.57 | |||
| 15000 | $ 0.55 | |||
Description
General part information
PA4547.XXXNLT Series
Power Inductors - SMD 10uH 1.2A 1.2mm 20% SMT
