VS-30APF02PBF

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 3A TO247AC

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE SCHOTTKY 100V 3A TO247AC

Technical Specifications

Parameters and characteristics for this part

Specification	VS-30APF02PBF

Capacitance @ Vr, F	115 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C

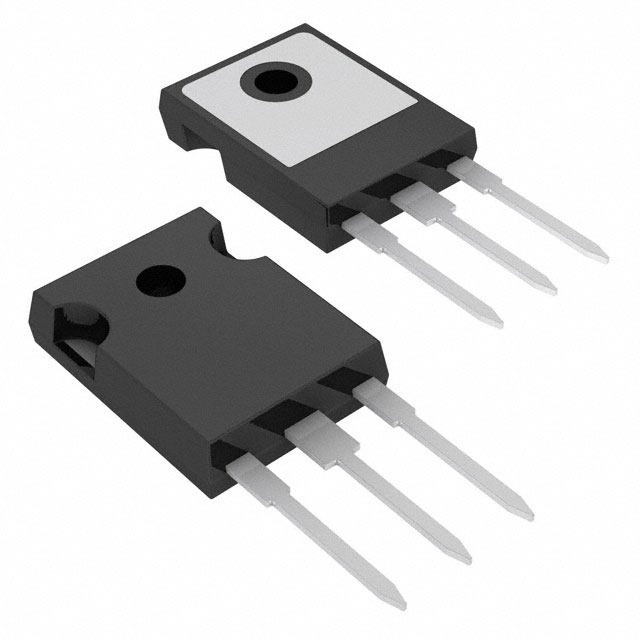

Package / Case	TO-247-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-247AC
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	790 mV

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Technology	Speed	Mounting Type
Vishay General Semiconductor - Diodes Division VS-30APF02-M3	790 mV	100 V	3 A	TO-247AC	TO-247-3	115 pF	175 ░C	-55 C	500 µA	Schottky	200 mA 500 ns	Through Hole
Vishay General Semiconductor - Diodes Division VS-30APF02PBF	790 mV	100 V	3 A	TO-247AC	TO-247-3	115 pF	175 ░C	-55 C	500 µA	Schottky	200 mA 500 ns	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 3A Through Hole TO-247AC
