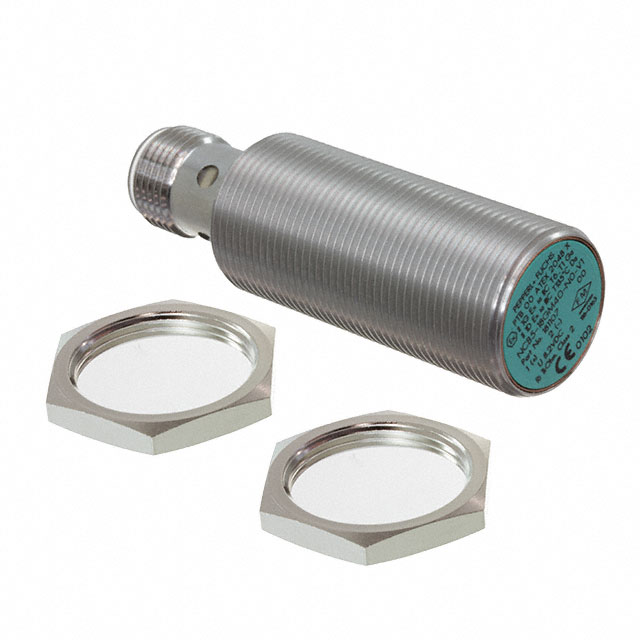

NCB5-18GM40-N0-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NCB5-18GM40-N0-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M18
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply	8.2 V

Part	Indicator [custom]	Material - Body	Sensor Type	Sensing Distance	Sensing Distance	Operating Temperature [custom]	Output Type	Package / Case	Voltage - Supply	Termination Style	Shielding	Ingress Protection
PEPPERL+FUCHS NCB5-18GM40-N0	LED	Stainless Steel	Inductive	0.197 in	5 mm	-25 °C 100 °C	SCR-NC 2-Wire	Cylinder Threaded - M18	8.2 V	Cable	Unshielded	IP66 IP67
PEPPERL+FUCHS NCB5-18GM40-N0-V1	LED	Stainless Steel	Inductive	0.197 in	5 mm	-25 °C 100 °C	SCR-NC 2-Wire	Cylinder Threaded - M18	8.2 V	Connector	Unshielded	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 5MM NAMUR
