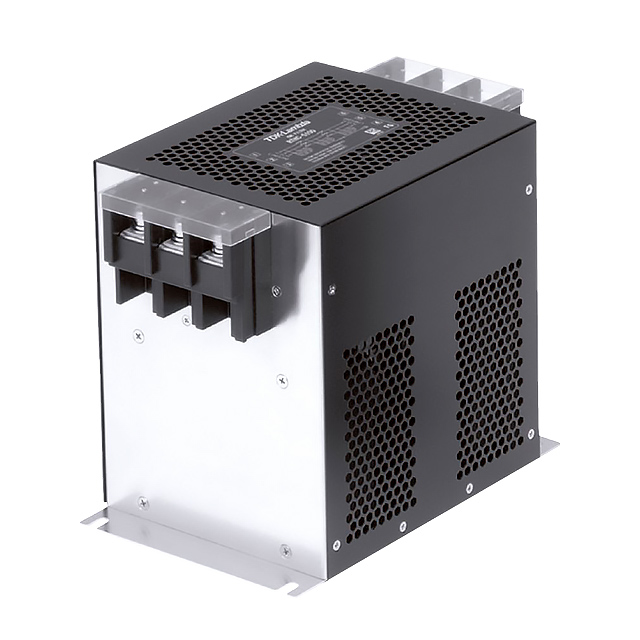

RTHC-5050

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 50 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 50 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated DC	Applications	Termination Style	Current	Mounting Type	Filter Type	Approval Agency	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated AC
TDK-LAMBDA RTHC-5060	500 V	General Purpose	Terminal Block	60 A	Chassis Mount	Three Phase (Delta)	EN UL	Two Stage	-25 °C	85 °C	500 V
TDK-LAMBDA RTHC-5200	500 V	General Purpose	Terminal Block	200 A	Chassis Mount	Three Phase (Delta)	EN	Two Stage	-25 °C	85 °C	500 V
TDK-LAMBDA RTHC-5050	500 V	General Purpose	Terminal Block	50 A	Chassis Mount	Three Phase (Delta)	EN UL	Two Stage	-25 °C	85 °C	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 50 A 500V 500V Two Stage Terminal Block
