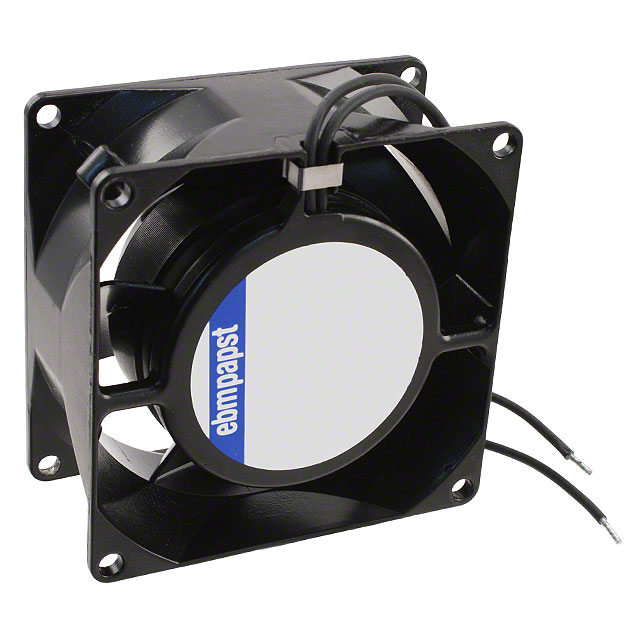

8830N - 8830N

8830N

Active
ebm-papst Inc.

FAN AXIAL 80X38MM 115VAC WIRE

Deep-Dive with AI

DocumentsTubeaxial Fan Accessories - Quick ReferenceCompact Fans for AC, DC, and EC Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification8830N
Air Flow0.594 m³/min
Air Flow21.2 CFM
Approval AgencyUL, CE, VDE, CSA
Bearing TypeSintec
Fan TypeTubeaxial
Lifetime @ Temp.62500 Hrs
Material - BladeMetal
Material - FrameMetal
Noise21 dB(A)
Operating Temperature [Max]80 C
Operating Temperature [Max]80 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)8 W
RPM1950 RPM
Size / Dimension [x]80 mm
Size / Dimension [y]80 mm
Termination2 Wire Leads
Voltage - Rated115 VAC
Weight499 g
Weight1.1 lbs
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 34.94

Description

General part information

8830 Series

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Sintec 21.2 CFM (0.594mł/min) 2 Wire Leads
