D2824-42

Active

Harwin Inc.

SOCKET IC, DIL, 24WAY, TUBE 17, PK17

Search across all available documentation for this part.

Active

Harwin Inc.

SOCKET IC, DIL, 24WAY, TUBE 17, PK17

Technical Specifications

Parameters and characteristics for this part

Specification	D2824-42

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	196.9 µin
Contact Finish Thickness - Post	5 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.2 mm
Termination Post Length	0.126 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Features	Contact Finish - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Termination	Contact Resistance	Housing Material	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type
Harwin Inc. D2824-42	3.2 mm	0.126 in	24	-55 °C	125 °C	DIP	0.6 in	15.24 mm	Open Frame	Tin	1 A	Flash	Solder	10 mOhm	Plastic	Gold	196.9 µin	5 µm	Beryllium Copper	2.54 mm	0.1 in	Brass	0.1 in	2.54 mm	UL94 V-0	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

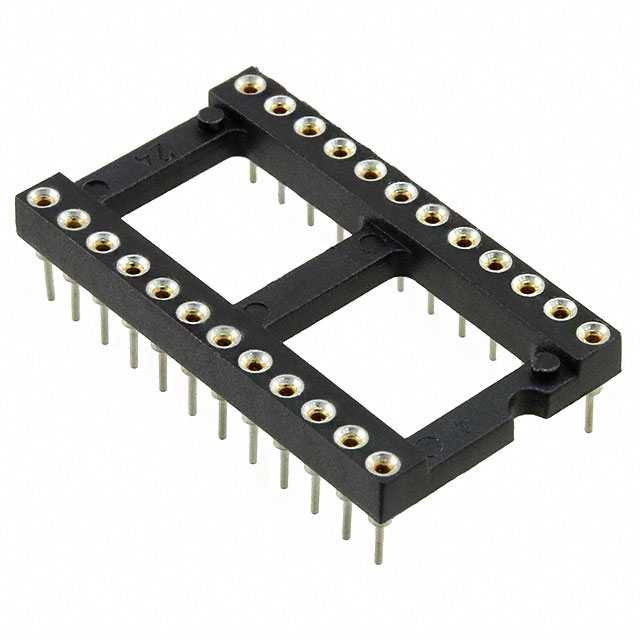

24 (2 x 12) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
