NXFT15WF104FA1B025

LTB

Murata Power Solutions Inc.

THERM NTC 100KOHM 4250K BEAD

Search across all available documentation for this part.

LTB

Murata Power Solutions Inc.

THERM NTC 100KOHM 4250K BEAD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	B25/50	Resistance in Ohms @ 25°C	B Value Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Resistance Tolerance	B25/100	Package / Case	B25/85
Murata Power Solutions Inc. NXFT15WF104FA2B080	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA1B040	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA2B060	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA1B030	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA2B130	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA2B090	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA2B110	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA2B120	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA1B090	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K
Murata Power Solutions Inc. NXFT15WF104FA1B025	Free Hanging	4250 K	100k	1 %	125 °C	-40 °C	100 mW	1 %	4334 K	Bead	4311 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

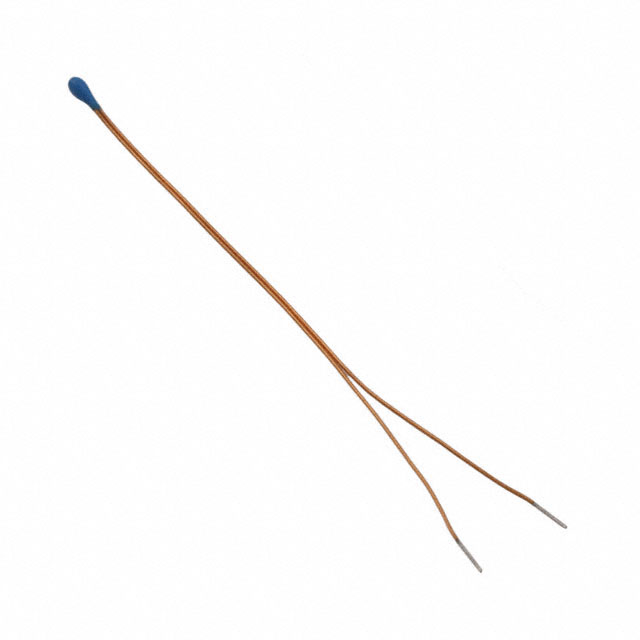

NTC Thermistor 100k Bead

Technical documentation and resources
