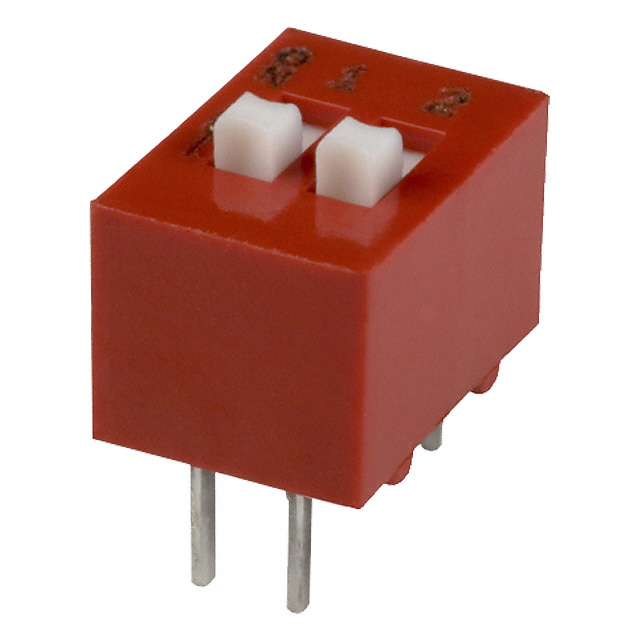

78B02T - 78B02(S,ST,T)

78B02T

Active
Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+2
78B02T - 78B02(S,ST,T)

78B02T

Active
Grayhill Inc.

SWITCH SLIDE DIP SPST 0.15A 30V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

Specification78B02T
Actuator LevelRaised
Actuator TypeSlide (Standard)
Body MaterialThermoplastic
CircuitSPST
Contact FinishGold
Contact MaterialCopper Alloy
Electrical Life2000 Steps
Height Above Board [z]8 mm
Height Above Board [z]0.315 in
Length7.11 mm
Length0.28 "
Mechanical Life2000 Cycles
Mounting TypeThrough Hole
Number of Positions2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
PitchFull
Pitch [x]0.1 in
Pitch [x]2.54 mm
Termination StylePC Pin
Voltage Rating30 VDC
WashableFalse

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 3.39
10$ 3.20
35$ 2.91
105$ 2.52
280$ 2.28
525$ 2.12
1015$ 1.96
2520$ 1.78
5005$ 1.71
NewarkEach 1$ 3.30
10$ 2.97
25$ 2.77
50$ 2.70
100$ 2.63

Description

General part information

78B02 Series

Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
