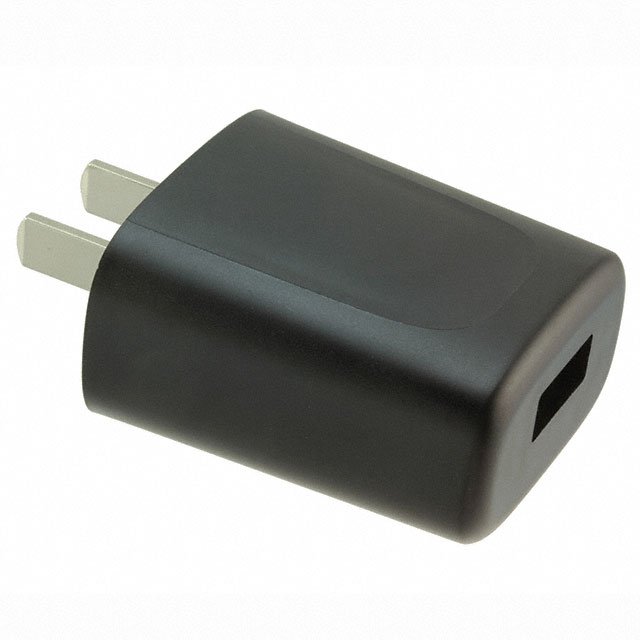

DA10-050CH

Obsolete

ARTESYN / Advanced Energy

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	DA10-050CH

Applications	ITE (Commercial)
Approval Agency	DEMKO CB, UL, CSA, CCC, PSE, CE
Current - Output (Max) [Max]	2 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	GB 1002
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10 W
Region Utilized	China
Size / Dimension [x]	25 mm, 0.98 in
Size / Dimension [y]	39.5 mm, 1.56 in
Size / Dimension [z]	1.73 in, 44 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Current - Output (Max) [Max]	Efficiency	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Form	Size / Dimension	Size / Dimension	Size / Dimension	Power (Watts)	No Load Power Consumption [Max]	Voltage - Output	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Region Utilized	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Output Connector	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy DA10-050EU	2 A	CoC Tier 2 Level VI	Fixed Blade	-10 °C	40 °C	Wall Mount (Class II)	2.45 " 62.3 mm	0.98 " 25 mm	1.56 " 39.5 mm	10 W	75 mW	5 V	CEE 7/16	90 VAC	264 VAC	ITE (Commercial)	Europe	CCC CE CSA DEMKO CB PSE UL
ARTESYN / Advanced Energy DA10-050UK	2 A	CoC Tier 2 Level VI	Fixed Blade	-10 °C	40 °C	Wall Mount (Class II)				10 W	75 mW	5 V	BS 1363	90 VAC	264 VAC	ITE (Commercial)	United Kingdom	CCC CE CSA DEMKO CB PSE UL	1.93 in	49 mm	1.63 "	47.5 mm	41.4 mm	1.87 "
ARTESYN / Advanced Energy DA10-050MP-M402	2 A	Level VI	Multi-Blade (Sold Separately)	-10 °C	40 °C	Wall Mount (Class II)				10 W		5 V	Multi-Blade	90 VAC	264 VAC	ITE (Commercial) Medical	International		1.58 in		2.36 in		60 mm	2.06 in	USB Micro	1.5 m	59 in	40.2 mm	52.2 mm
ARTESYN / Advanced Energy DA10-050CH	2 A	CoC Tier 2 Level VI	Fixed Blade	-10 °C	40 °C	Wall Mount (Class II)				10 W	75 mW	5 V	GB 1002	90 VAC	264 VAC	ITE (Commercial)	China	CCC CE CSA DEMKO CB PSE UL					0.98 in 25 mm					1.56 in 39.5 mm	1.73 in 44 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
