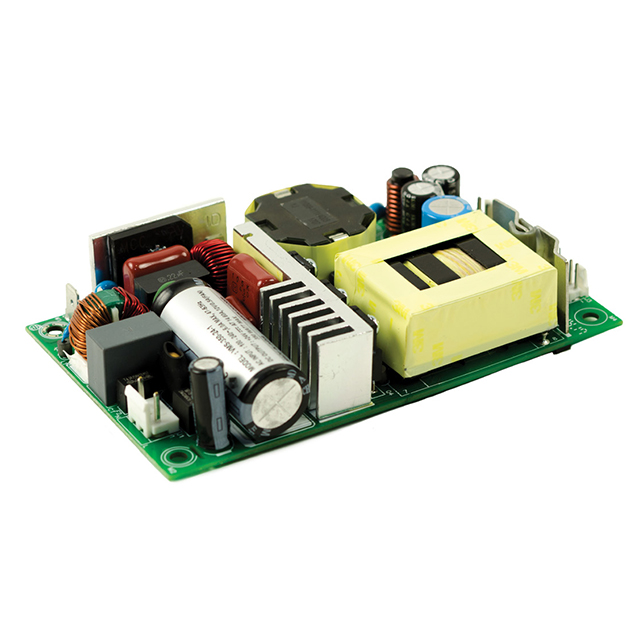

VMS-350-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 175W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VMS-350-48

Obsolete

CUI Inc.

AC/DC CONVERTER 48V 175W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VMS-350-48

Applications	Medical
Approval Agency	TUV, CB Scheme, UL, FCC, IEC, EN
Current - Output 1 [custom]	3.65 A
Efficiency	94 %
Features	Standby Output, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	350 W, 175 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Standard Number	61000-3-2, 61000-3-3, 55011 Class B, 60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.2 kV
Voltage - Output 1	48 V

VMS-350 Series

Part	Mounting Type	Number of Outputs	Approval Agency	Efficiency	Applications	Power (Watts)	Standard Number	Current - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Isolation	Voltage - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1 [custom]
CUI Inc. VMS-350-30-1	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	93 %	Medical	175 W 350 W	55011 Class B 60601-1 61000-3-2 61000-3-3	5.83 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	30 V	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC
CUI Inc. VMS-350-12	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	92 %	Medical	175 W 300 W	55011 Class B 60601-1 61000-3-2 61000-3-3	14.58 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	12 V	Adjustable Output Standby Output Universal Input	90 VAC	264 VAC
CUI Inc. VMS-350-24-1	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	93 %	Medical	175 W 350 W	55011 Class B 60601-1 61000-3-2 61000-3-3	7.29 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	24 V	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC
CUI Inc. VMS-350-15-1	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	92 %	Medical	175 W 270 W	55011 Class B 60601-1 61000-3-2 61000-3-3	11.67 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	15 V	Adjustable Output PFC Standby Output Universal Input	90 VAC	264 VAC
CUI Inc. VMS-350-48	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	94 %	Medical	175 W 350 W	55011 Class B 60601-1 61000-3-2 61000-3-3		1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	48 V	Adjustable Output Standby Output Universal Input	90 VAC	264 VAC	3.65 A
CUI Inc. VMS-350-24	Chassis Mount	1	CB Scheme EN FCC IEC TUV UL	93 %	Medical	175 W 350 W	55011 Class B 60601-1 61000-3-2 61000-3-3	7.29 A	1 "	25.4 mm	3 "	5 in	127 mm	76.2 mm	Open Frame	4.2 kV	24 V	Adjustable Output Standby Output Universal Input	90 VAC	264 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VMS-350 Series

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
