DF38A-30S-0.3V(51)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.012 GOLD SMD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 30POS 0.012 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	DF38A-30S-0.3V(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	0.099 µm
Contact Finish Thickness - Post	3.9 µin
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Pick and Place, Solder Retention
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.3 mm
Pitch - Mating	0.012 "
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VAC

Part	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height	Contact Material	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish - Mating	Style	Material Flammability Rating	Fastening Type	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Hirose Electric USA, Inc. DF38A-40S-0.3V(55)
Hirose Electric USA, Inc. DF38A-32S-0.3V(51)	Varies by Wire Gauge	Surface Mount	1.5 mm	0.059 "	Phosphor Bronze	Center Strip Contact	Black	-35 °C	85 °C	Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP) Halogen Free	0.3 mm	0.012 "	30 VAC	Gold	Board to Cable/Wire	UL94 V-0	Friction Lock	Solder	0.099 µm	3.9 µin	1	Receptacle	Gold	0.099 µm	3.9 µin
Hirose Electric USA, Inc. DF38A-30S-0.3V(51)	Varies by Wire Gauge	Surface Mount	1.5 mm	0.059 "	Phosphor Bronze	Center Strip Contact	Black	-35 °C	85 °C	Pick and Place Solder Retention	All	Liquid Crystal Polymer (LCP) Halogen Free	0.3 mm	0.012 "	30 VAC	Gold	Board to Cable/Wire	UL94 V-0	Friction Lock	Solder	0.099 µm	3.9 µin	1	Receptacle	Gold	0.099 µm	3.9 µin	30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

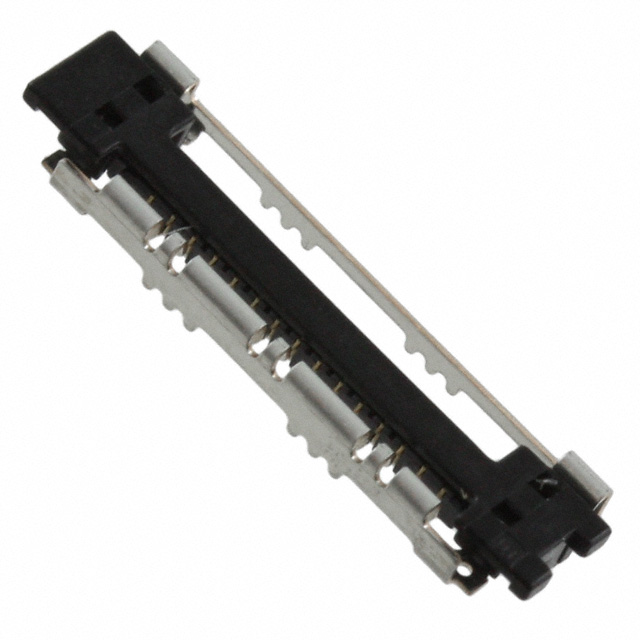

30 Position Receptacle Connector 0.012" (0.30mm) Surface Mount Gold
