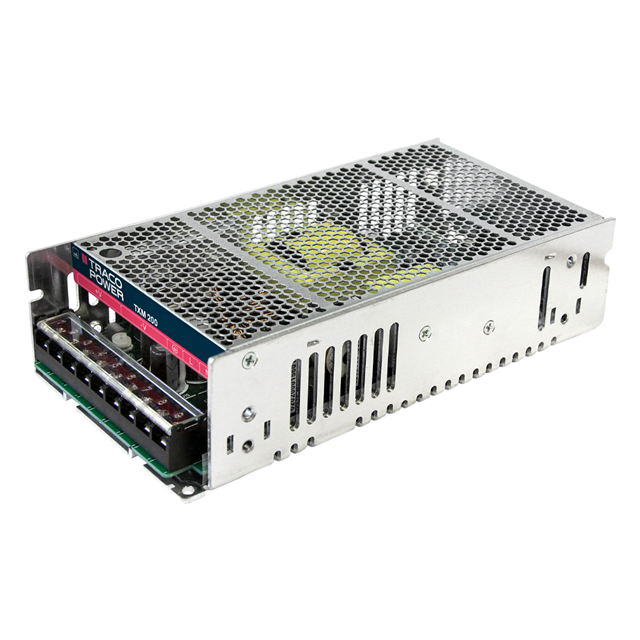

TXM 200-148

Active

Traco Power

AC/DC CONVERTER 48V 202W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 48V 202W

Technical Specifications

Parameters and characteristics for this part

Specification	TXM 200-148

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	4.2 A
Efficiency	88.5 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	199 mm
Size / Dimension [x]	7.83 in
Size / Dimension [y]	99 mm
Size / Dimension [y]	3.9 in
Size / Dimension [z]	50.3 mm
Size / Dimension [z]	1.98 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Current - Output 1	Number of Outputs	Type	Efficiency	Mounting Type	Voltage - Isolation	Minimum Load Required	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Features
Traco Power TXM 200-148	4.2 A	1	Enclosed	88.5 %	Chassis Mount	3000 V		199 mm	50.3 mm	7.83 in	1.98 in	99 mm	3.9 in	264 VAC 370 VDC	90 VAC 120 VDC	CB CE cURus	ITE (Commercial)	48 V	65 °C	-20 °C	Adjustable Output PFC Universal Input
