095Z820-161-018
ActiveAmphenol RF

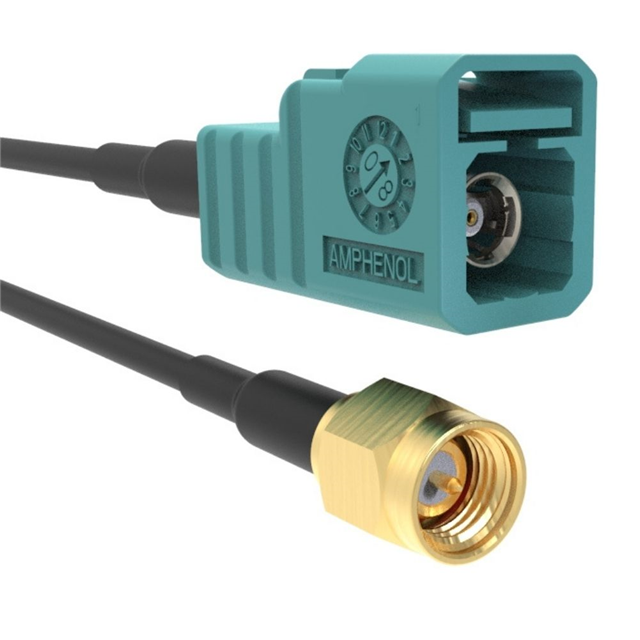

RF / COAXIAL CABLE ASSEMBLY, GEN 3.0, RG174, 50 OHM, 18 ", 457.2 MM
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 095Z820-161-018 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Fakra III (Gen 3.0) Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Frequency - Max [Max] | 3 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to Fakra III |
095Z820 Series
| Part | Frequency - Max [Max] | 1st Connector Mounting Type | Cable Impedance | Overall Impedance | Style | 1st Contact Gender | Cable Type | 1st Connector | Color | Length | Length | Length | 2nd Connector Mounting Type | 2nd Contact Gender | 2nd Connector | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Male | RG-58 | SMA Plug | Black | 1 m | 3.3 ft | 39.4 in | Free Hanging (In-Line) | Male | Fakra II (Gen 2.0) Plug | ||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Female | RG-58 | SMA Jack | Black | 91.44 cm | 36 in | Free Hanging (In-Line) | Female | Fakra II (Gen 2.0) Jack | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Female | RG-58 | SMA Jack | Black | 2 m | 6.6 ft | 78.7 in | Free Hanging (In-Line) | Female | Fakra II (Gen 2.0) Jack | ||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Female | RG-58 | SMA Jack | Black | 3 m | 9.8 ' | 118.1 in | Free Hanging (In-Line) | Female | Fakra II (Gen 2.0) Jack | ||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Female | RG-174 | SMA Jack | Black | 152.4 mm | 6 in | Free Hanging (In-Line) | Male | Fakra II (Gen 2.0) Plug | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra III | Female | RG-58 | SMA Jack | Black | 609.6 mm | 24 " | Free Hanging (In-Line) | Female | Fakra III (Gen 3.0) Jack | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra III | Male | RG-174 | SMA Plug | Black | 152.4 mm | 6 in | Free Hanging (In-Line) | Female | Fakra III (Gen 3.0) Jack | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra III | Male | RG-174 | SMA Plug | Black | 91.44 cm | 36 in | Free Hanging (In-Line) | Female | Fakra III (Gen 3.0) Jack | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra II | Male | RG-174 | SMA Plug | Black | 91.44 cm | 36 in | Free Hanging (In-Line) | Male | Fakra II (Gen 2.0) Plug | |||
Amphenol RF | 3 GHz | Free Hanging (In-Line) | 50 Ohms | 50 Ohms | SMA to Fakra III | Male | RG-174 | SMA Plug | Black | Free Hanging (In-Line) | Female | Fakra III (Gen 3.0) Jack | 457.2 mm | 457.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
095Z820 Series
Cable Assembly Coaxial SMA to Fakra III RG-174 18.00" (457.20mm)
