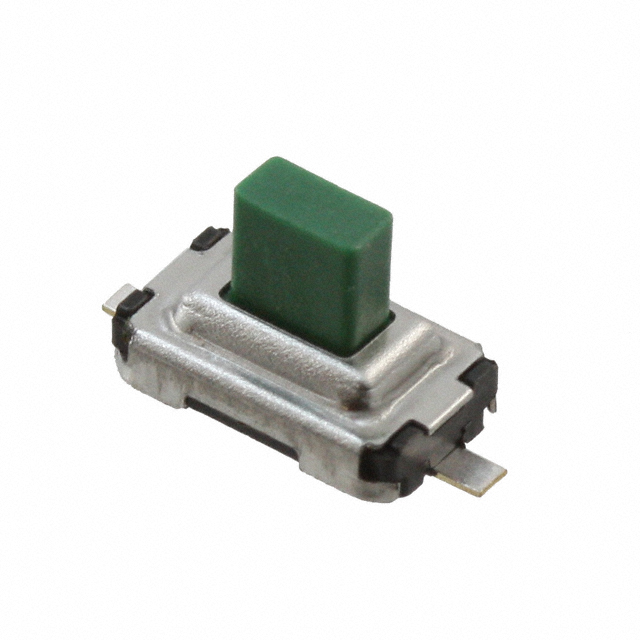

SWT3-G2GTR

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SWT3-G2GTR

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Rectangular Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	3.5 mm
Switch Function	Off-Mom
Termination Style	Gull Wing

Part	Switch Function	Outline [y]	Outline [x]	Actuator Type	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Termination Style	Contact Rating @ Voltage	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit
TT Electronics/BI SWT3-G2GTR	Off-Mom	3.5 mm	6 mm	Rectangular Button	Top Actuated	4.3 mm	Gull Wing	0.05 A 12 VDC	Non-Illuminated	Surface Mount	-20 C	70 °C	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

No documents available
