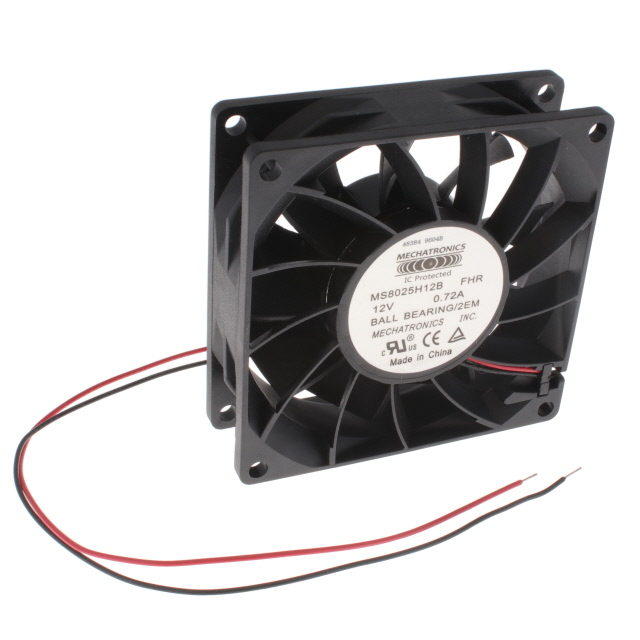

MS8025H12B-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 80X25.2MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MS8025H12B-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 80X25.2MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS8025H12B-FHR-2EM |
|---|---|
| Bearing Type | Ball |
| Current Rating (Amps) | 0.56 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 50 dB(A) |
| RPM | 5000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 137 Pa |
| Static Pressure | 0.55 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 78.02 g |
| Weight | 0.172 lb |
| Width [x] | 25.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.01 | |
| 10 | $ 16.24 | |||
| 25 | $ 15.27 | |||
| 50 | $ 14.69 | |||
| 100 | $ 13.53 | |||
| 250 | $ 12.66 | |||
| 500 | $ 12.47 | |||
Description
General part information
MS8025 Series
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 70.5 CFM (1.97mł/min) 2 Wire Leads
