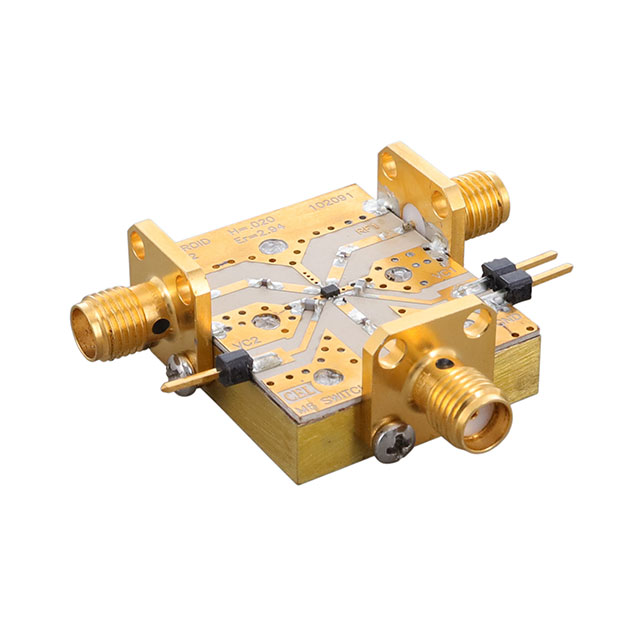

CG2415M6-EVAL

Active

CEL

EVAL BOARD FOR CG2415M6

Search across all available documentation for this part.

Active

CEL

EVAL BOARD FOR CG2415M6

Technical Specifications

Parameters and characteristics for this part

Specification	CG2415M6-EVAL

For Use With/Related Products	CG2415M6
Frequency [Max]	6 GHz
Frequency [Min]	500 MHz
Supplied Contents	Board(s)
Type	Switch, SPDT

Part	Type	Supplied Contents	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Test Frequency	RF Type	Insertion Loss	Isolation	IIP3	Circuit	Package / Case	Impedance	Voltage - Supply	Supplier Device Package	Frequency Range [Max]	Frequency Range [Min]
CEL CG2415M6-EVAL	Switch SPDT	Board(s)	6 GHz	500 MHz	CG2415M6
CEL CG2415M6-C2						6 GHz	802.11a/b/g/n/ac	0.45 dB	26 dB	60 dBm	SPDT	6-SMD Flat Leads	50 Ohms	3 V	6-Minimold	6 GHz	500 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CG2415M6 - Switch, SPDT 500MHz ~ 6GHz Evaluation Board
