1105-7521-003

Active

Radiall USA, Inc.

SMC F RA NA CR 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC F RA NA CR 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	1105-7521-003

Body Finish	Gold
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.5 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Voltage Rating	Cable Group	Body Material	Center Contact Plating	Contact Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Connector Type	Impedance	Frequency - Max [Max]	Shield Termination	Mating Cycles	Center Contact Material	Number of Ports	Mounting Type	Connector Style	Body Finish	Housing Color
Radiall USA, Inc. 1105-7521-003	335 V	179 316 RG-174	Brass	Gold	Crimp	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	0.5 dB	Female Socket Plug	50 Ohms	10 GHz	Crimp	500	Beryllium Copper	1	Free Hanging (In-Line) Right Angle	SMC	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.99

General part information

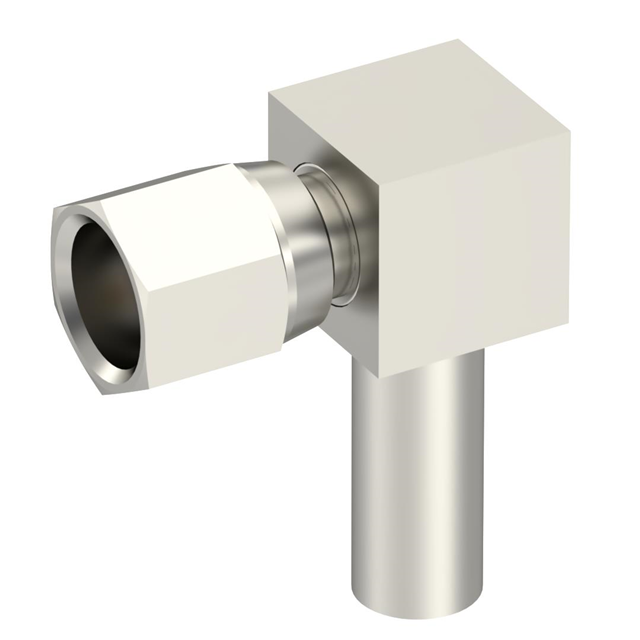

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Crimp
