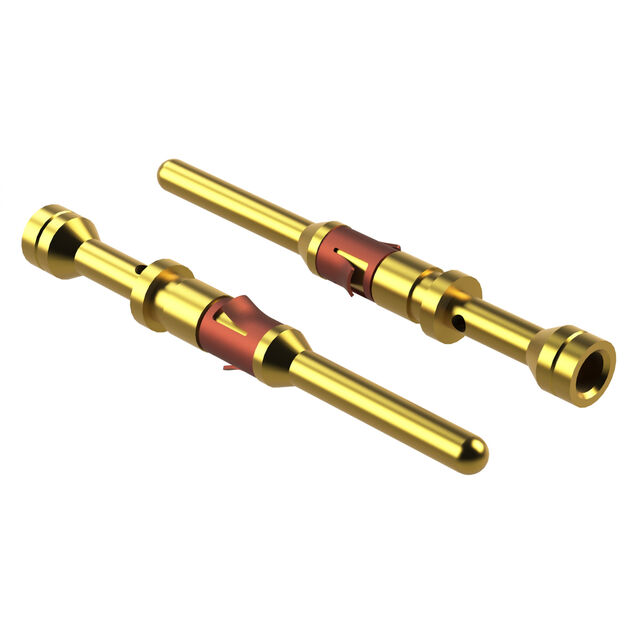

MP24M23G30
ActiveAmphenol Sine Systems Corp
PIN CONTACT, MACHINED, SIZE 16,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP24M23G30
ActiveAmphenol Sine Systems Corp
PIN CONTACT, MACHINED, SIZE 16,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP24M23G30 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Size | 16 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Type | Machined |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 24 AWG |
| Wire Gauge or Range - mm² [Max] | 0.25 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.68 | |
| 10 | $ 3.12 | |||
| 25 | $ 2.93 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.49 | |||
| 500 | $ 2.37 | |||
| 1000 | $ 2.26 | |||
| 2500 | $ 2.12 | |||
Description
General part information
MP24 Series
Pin Contact 24-28 AWG Size 16 Crimp Gold
