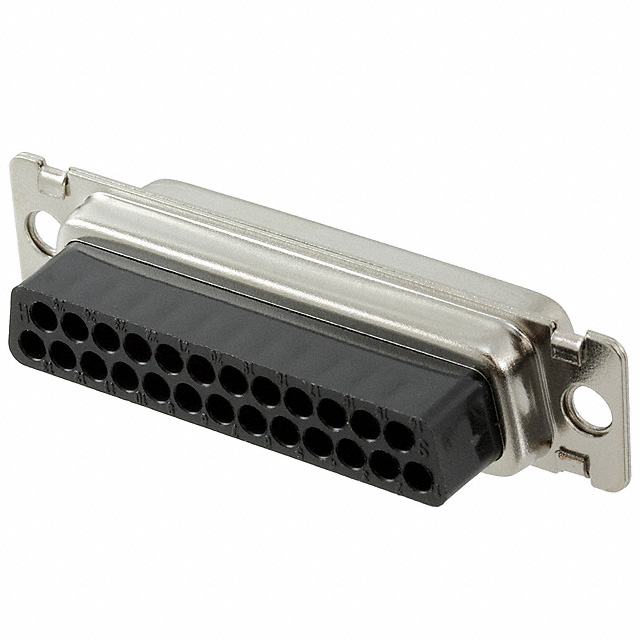

40-9825S

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN D-SUB HOUSING RCPT 25POS

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN D-SUB HOUSING RCPT 25POS

Technical Specifications

Parameters and characteristics for this part

Specification	40-9825S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Color	Note	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Connector Type	Features	Number of Rows	Dielectric Material	Mounting Type	Flange Feature	Connector Style	Contact Type
Cinch Connectivity Solutions AIM-Cambridge 40-9825M	Black	Contacts Not Included	B DB	3	Nickel Plated Steel	Plug for Male Contacts	Grounding Indents	2	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	D-Sub	Signal
Cinch Connectivity Solutions AIM-Cambridge 40-9825S	Black	Contacts Not Included	B DB	3	Nickel Plated Steel	Receptacle for Female Contacts		2	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	D-Sub	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Receptacle for Female Contacts Housing D-Sub Connector 25 Position
