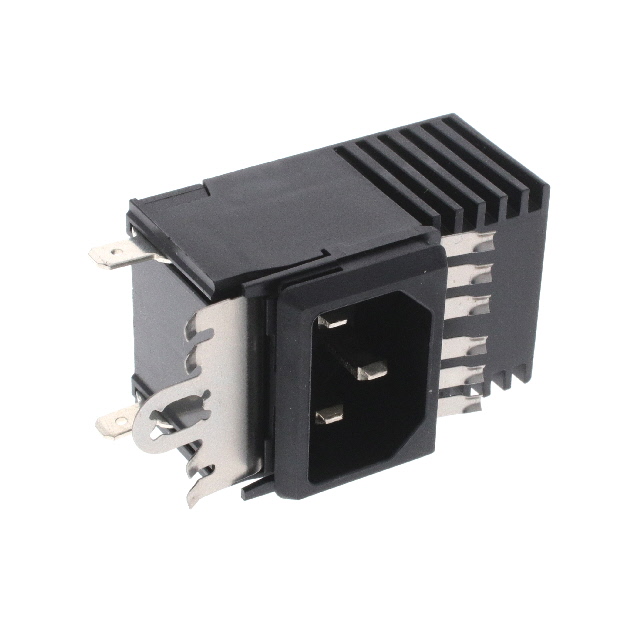

GRF4.0416.013.C

Active

SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 6 A, 250 VAC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C14, GENERAL PURPOSE, 6 A, 250 VAC

Technical Specifications

Parameters and characteristics for this part

Specification	GRF4.0416.013.C

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	6 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	20.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Mounting Type	Ingress Protection	Material Flammability Rating	Filter Type	Voltage Rating - Appliance Inlet	Features	Panel Thickness [custom]	Panel Thickness [custom]	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Filter	Accomodates a Fuse	Termination	Termination	Connector Type	Current Rating - Appliance Inlet	Connector Style
SCHURTER Inc. GRF4.0416.013.C	Panel Mount Snap-In	IP40	UL94 V-0	Filtered (EMI RFI) - Commercial	250 VAC	Shielded	0.059 in	1.5 mm	CSA UL VDE	30.5 mm	20.8 mm	6 A		0.189 " 4.8 mm	Quick Connect	Male Blades Receptacle	10 A	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
