3020-40-0100-00

Active

CnC Tech, LLC

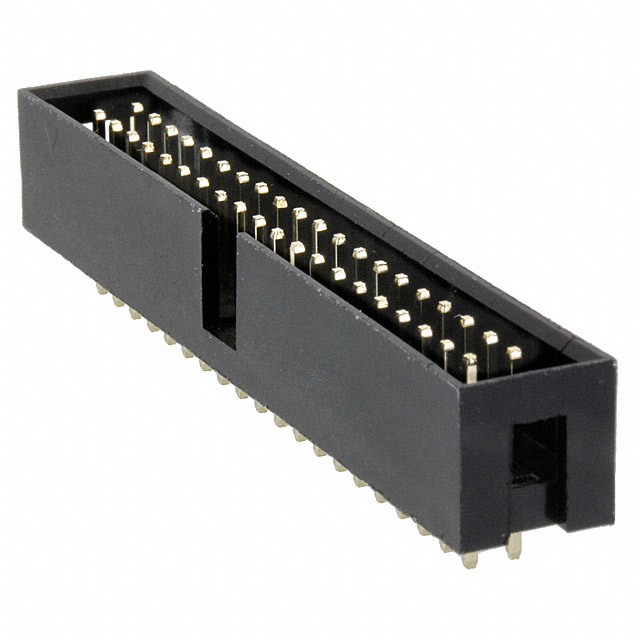

CONN SHROUDED HEADER HDR 40 POS 2.54MM SOLDER ST THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC Header Mating Guide Datasheet +2

3020-40-0100-00

Active

CnC Tech, LLC

CONN SHROUDED HEADER HDR 40 POS 2.54MM SOLDER ST THRU-HOLE

Deep-Dive with AI

DocumentsIDC Header Mating Guide Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-40-0100-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

3020-40 Series

Part	Number of Positions	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Termination	Fastening Type	Style	Contact Shape	Connector Type	Contact Finish - Mating	Mounting Type	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Insulation Material	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Features	Voltage Rating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Height	Insulation Height
CnC Tech, LLC 3020-40-0100-02	40	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	All	Solder	Push-Pull	Board to Cable/Wire	Square	Header	Gold	Through Hole Right Angle	0.35 in	8.89 mm	Male Pin	Nylon 6T Polyamide (PA6T)	2	30 Áin	0.76 Ám	Shrouded - 4 Wall	0.118 in	3 mm	2.54 mm	0.1 in	-40 °C	105 ░C
CnC Tech, LLC 3020-40-0200-00	40	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	All	Solder	Push-Pull	Board to Cable/Wire	Square	Header	Gold	Through Hole Right Angle			Male Pin	Nylon 9T Polyamide (PA9T)	2			Shrouded - 4 Wall	0.118 in	3 mm	2.54 mm	0.1 in	-40 °C	105 ░C	0.346 in	8.8 mm	Flash	Keying Slot	250 VAC	Black	Flash	Gold
CnC Tech, LLC 3020-40-0100-00	40	Brass	0.1 in	2.54 mm	3 A	UL94 V-0	All	Solder	Push-Pull	Board to Cable/Wire	Square	Header	Gold	Through Hole			Male Pin	Nylon 9T Polyamide (PA9T)	2			Shrouded - 4 Wall	0.118 in	3 mm	2.54 mm	0.1 in	-40 °C	105 ░C			Flash	Keying Slot	250 VAC	Black	Flash	Gold	9 mm	0.354 in
