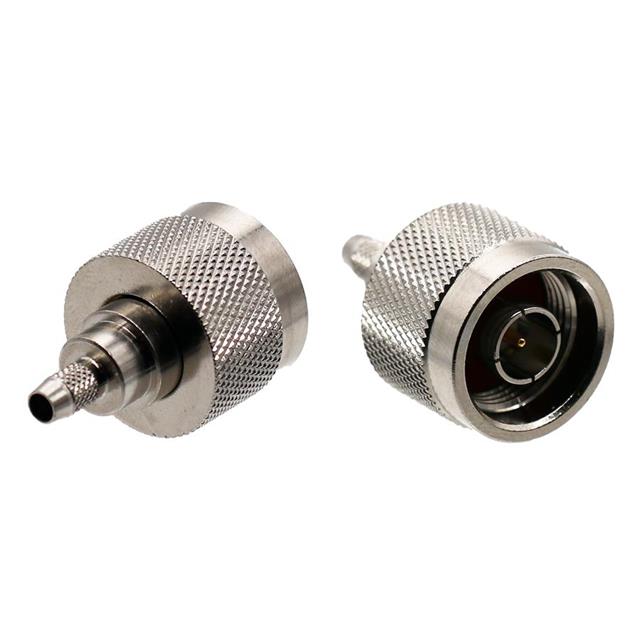

138-0408-011

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, RG142, 50

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

N STRAIGHT CRIMP PLUG, RG142, 50

Technical Specifications

Parameters and characteristics for this part

Specification	138-0408-011

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-142
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Connector Type	Body Finish	Housing Color	Impedance	Shield Termination	Center Contact Plating	Body Material	Center Contact Material	Dielectric Material	Mounting Type	Voltage Rating	Mating Cycles	Connector Style	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Frequency - Max [Max]	Insertion Loss	Cable Group
Cinch Connectivity Solutions Johnson 138-0408-011	Male Pin Plug	Nickel	Silver	50 Ohms	Crimp	Gold	Brass	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	500 V	500	N Type	1	-65 ░C	165 °C	Crimp	4 GHz	0.1 dB	RG-142

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
