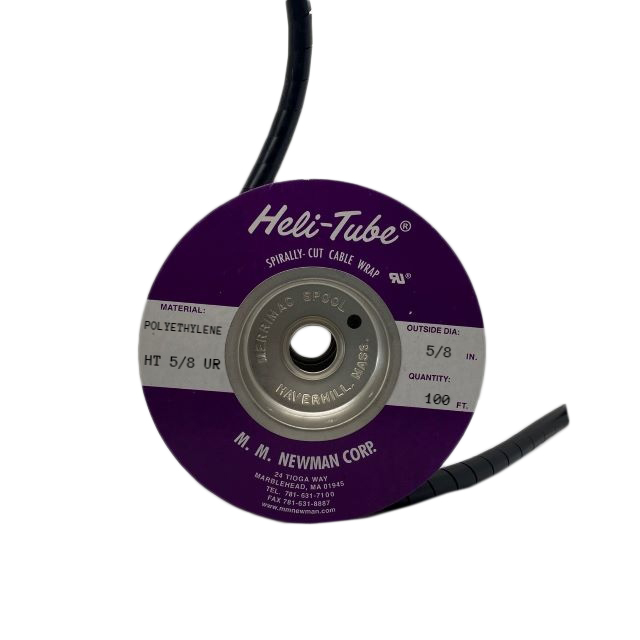

HT 5/8 UR

Active

MM Newman Corporation

SPIRAL WRAP 1/2" X 100' BLACK

Search across all available documentation for this part.

Active

MM Newman Corporation

SPIRAL WRAP 1/2" X 100' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	HT 5/8 UR

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	4.5 "
Diameter - Inside, Expanded [diameter]	114.3 mm
Diameter - Inside, Non-Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm
Diameter - Outside, Non-Expanded [diameter]	15.88 mm
Diameter - Outside, Non-Expanded [diameter]	0.625 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.57 mm
Wall Thickness	0.062 in

Part	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type Attributes	Wall Thickness	Wall Thickness	Material	Color	Abrasion Protection	Length	Length	Type	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Features	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Environment Protection
MM Newman Corporation HT 5/8 UR	0.5 in	12.7 mm	Harness	1.57 mm	0.062 in	Polyethylene (PE)	Black	Abrasion Resistant	100 ft	30.48 m	Spiral Wrap	4.5 "	114.3 mm	Chemical Resistant Solvent Resistant	15.88 mm	0.625 in	-60 °C	88 °C
MM Newman Corporation HT 5/8 N-B	0.561 in	14.25 mm	Harness	0.81 mm	0.032 in	Nylon	Black	Abrasion Resistant	100 ft	30.48 m	Spiral Wrap	4.5 "	114.3 mm	Chemical Resistant Self Extinguishing Solvent Resistant	15.88 mm	0.625 in	-40 °C	121 °C	UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spiral Wrap 0.625" (15.88mm) X 100' (30.48m) Black
