CT2265-0

Active

Cal Test Electronics

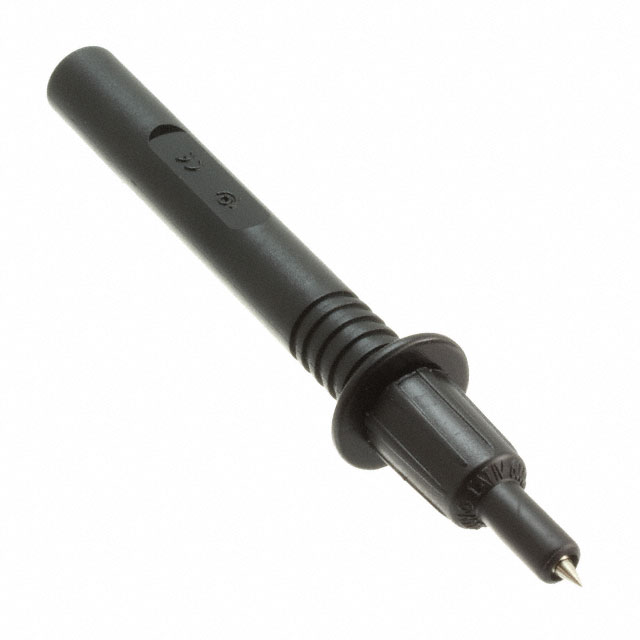

PROBE BODY, 4MM SPG TIP - BLACK

Search across all available documentation for this part.

Active

Cal Test Electronics

PROBE BODY, 4MM SPG TIP - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	CT2265-0

Color	Black
Connection Type	Female Socket (Jack), Banana
Current Rating (Amps)	36 A
Includes	IC Insulator Cap
Length - Overall	4.53 in
Length - Overall	115 mm
Length - Tip	18.49 mm
Length - Tip	0.728 in
Material - Body	Nylon
Material - Tip	Phosphor Bronze, Nickel Plated
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Quantity	1 Box
Ratings	CAT III 1000V, CAT IV 600V
Tip Type	Spring Tip
Voltage Rating	600 V, 1000 VDC

Part	Includes	Quantity	Connection Type	Material - Tip	Tip Type	Color	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Length - Overall	Length - Overall	Material - Body	Length - Tip	Length - Tip	Ratings
Cal Test Electronics CT2265-0	IC Insulator Cap	1 Box	Banana Female Socket (Jack)	Phosphor Bronze Nickel Plated	Spring Tip	Black	80 C	80 °C	-20 °C	-20 C	36 A	600 V 1000 VDC	4.53 in	115 mm	Nylon	18.49 mm	0.728 in	CAT III 1000V CAT IV 600V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.35

General part information

36 A Spring Tip Black
