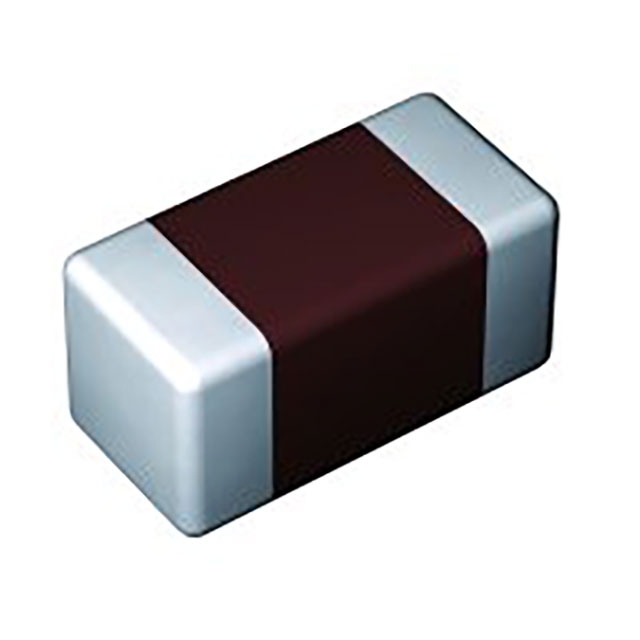

UMK325B7335MM-P

Active

TAIYO YUDEN

MLCC, 1210, 50V, X7R, 3.3UF20%, T&R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMK325B7335MM-P

Active

TAIYO YUDEN

MLCC, 1210, 50V, X7R, 3.3UF20%, T&R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMK325B7335MM-P

Applications	SMPS Filtering
Capacitance	3.3 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.106 "
Thickness (Max) [Max]	2.7 mm
Tolerance	20 %
Voltage - Rated	50 VDC

UMK325B Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Temperature Coefficient	Tolerance	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Package / Case	Package / Case	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings
TAIYO YUDEN UMK325B7335MM-P	-55 °C	125 °C	SMPS Filtering	MLCC Surface Mount	X7R	20 %	3.3 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325BJ475KNHT	-55 °C	85 °C	Automotive	MLCC Surface Mount	X5R	10 %	4.7 µF	0.083 in	2.1 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in	AEC-Q200
TAIYO YUDEN UMK325BJ105KH-T	-55 °C	85 °C	SMPS Filtering	MLCC Surface Mount	X5R	10 %	1 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325BJ475MN-T	-55 °C	85 °C	SMPS Filtering	MLCC Surface Mount	X5R	20 %	4.7 µF	0.037 in	0.95 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325B7475MN-TR	-55 °C	125 °C	SMPS Filtering	MLCC Surface Mount	X7R	20 %	4.7 µF	0.037 in	0.95 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325B7475KM-P	-55 °C	125 °C	SMPS Filtering	MLCC Surface Mount	X7R	10 %	4.7 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325B7335KM-P	-55 °C	125 °C	SMPS Filtering	MLCC Surface Mount	X7R	10 %	3.3 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325BJ106MM-P	-55 °C	85 °C	SMPS Filtering	MLCC Surface Mount	X5R	20 %	10 µF	0.11 in	2.8 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325B7475KM-T	-55 °C	125 °C	SMPS Filtering	MLCC Surface Mount	X7R	10 %	4.7 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in
TAIYO YUDEN UMK325BJ106MM-T	-55 °C	85 °C	SMPS Filtering	MLCC Surface Mount	X5R	20 %	10 µF	0.106 "	2.7 mm	1210	3225 Metric	50 VDC	3.2 mm	2.5 mm	0.126 in	0.098 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.26
Newark	Each (Supplied on Full Reel)	1	$ 0.26
		5000	$ 0.25
		10000	$ 0.23
		20000	$ 0.22
		30000	$ 0.20
		50000	$ 0.19

Description

General part information

UMK325B Series

3.3 µF ±20% 50V Ceramic Capacitor X7R 1210 (3225 Metric)
