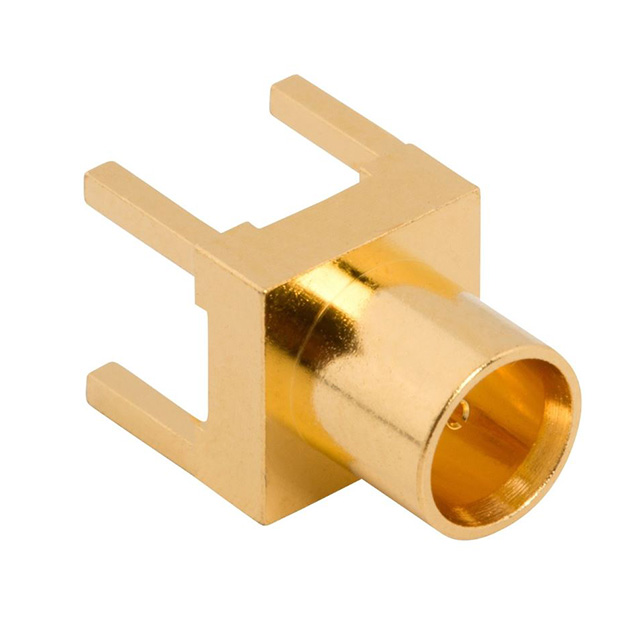

919-415J-71P12G

Active

Amphenol RF

CONN MCX 0HZ TO 12GHZ 75OHM SOLDER ST THRU-HOLE F GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX 0HZ TO 12GHZ 75OHM SOLDER ST THRU-HOLE F GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	919-415J-71P12G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Cable Group	Includes	Body Finish	Impedance	Fastening Type	Number of Ports	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Plating	Shield Termination	Dielectric Material	Mounting Type	Body Material	Center Contact Material	Connector Style	Frequency - Max [Max]	Connector Type	Housing Color
Amphenol RF 919-416P-71A12G	Belden 4855R	1 Connector 1 End Cap 1 Ferrule	Gold Nickel	75 Ohms	Snap-On	1	500	-65 ░C	165 °C	Solder	Gold	Crimp	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Beryllium Copper Brass	Brass	MCX	12 GHz	Male Pin Plug
Amphenol RF 919-415J-71P12G			Gold	75 Ohms	Snap-On	1	500	-65 ░C	165 °C	Solder	Gold	Solder	Polytetrafluoroethylene (PTFE)	Through Hole	Brass	Beryllium Copper	MCX	12 GHz	Female Socket Jack	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
