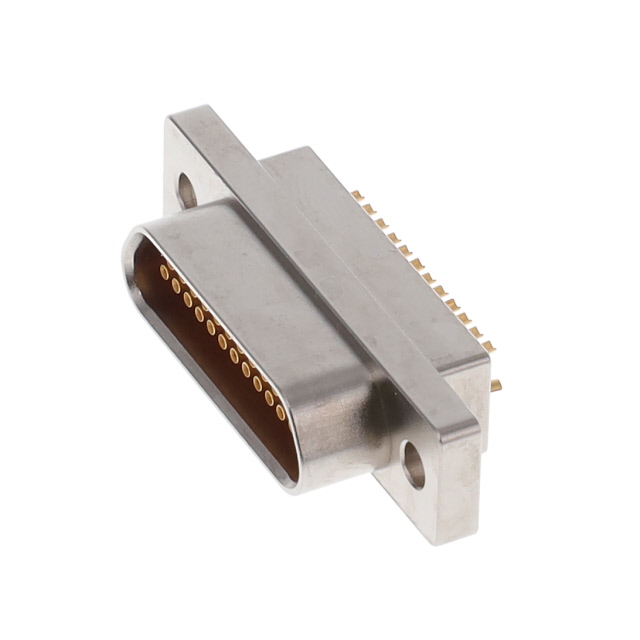

M83513/02-DN

Active

Cinch Connectivity Solutions Trompeter

D SUB CONNECTOR, MICRO D, RECEPTACLE, MIL-DTL-83513 SERIES, 25 CONTACTS, SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

M83513/02-DN

Active

Cinch Connectivity Solutions Trompeter

D SUB CONNECTOR, MICRO D, RECEPTACLE, MIL-DTL-83513 SERIES, 25 CONTACTS, SOLDER CUP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/02-DN

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Aluminum Alloy, Electroless
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05

M83513/02 Series

Part	Shell Material, Finish	Flange Feature	Contact Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Material Flammability Rating	Connector Type	Number of Positions	Current Rating (Amps)	Connector Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Cinch Connectivity Solutions Trompeter M83513/02-FC	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	37	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-BC	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	15	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-GC	Aluminum Alloy Yellow Chromate Plated Cadmium	Housing/Shell (Unthreaded)	Signal	3	0.05	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	51	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-GN	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	Signal	3	0.05	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	51	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-DN	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets		3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-CN	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	21	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-EN	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	31	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C
Cinch Connectivity Solutions Trompeter M83513/02-FN	Aluminum Alloy Electroless Nickel Plated	Housing/Shell (Unthreaded)	Signal	2	0.043	0.05	Polyester Glass Filled	50 µin	1.27 µm	Gold	UL94 V-0	Receptacle Female Sockets	37	3 A	D-Type Micro-D	Copper Alloy	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 109.16
		10	$ 84.99
		25	$ 77.35
		50	$ 72.20
		100	$ 67.54
	Bulk	1	$ 688.52
		1	$ 154.59
		10	$ 120.69
		25	$ 109.99
		50	$ 102.77
		100	$ 96.25
Newark	Each	1	$ 112.61
		1	$ 272.73
		10	$ 100.27
		25	$ 91.53
		50	$ 84.85
		100	$ 79.71

Description

General part information

M83513/02 Series

25 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
