TG.42.0112
ActiveTAOGLAS
RF ANTENNA, 2.3 TO 2.69GHZ, 3.62DBI ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TG.42.0112
ActiveTAOGLAS
RF ANTENNA, 2.3 TO 2.69GHZ, 3.62DBI ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TG.42.0112 |
|---|---|
| Applications | LTE |
| Frequency (Center/Band) | 892 MHz, 1.92 GHz, 1.795 GHz, 2.045 GHz, 761 MHz, 657.5 MHz, 2.495 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 960 MHz, 1.88 GHz, 2.69 GHz, 698 MHz, 2.17 GHz, 1.99 GHz, 824 MHz |
| Frequency Range [Min] | 617 MHz, 2.3 GHz, 698 MHz, 1.71 GHz, 1.85 GHz, 1920 MHz, 824 MHz |
| Gain | 3.29 dBi, 3.62 dBi, 3.3 dBi, 3.56 dBi, 3.6 dBi, 2.1 dBi |
| Height (Max) | 62.2 mm |
| Height (Max) [Max] | 2.449 in |
| Ingress Protection | IPX5 |
| Mounting Type | Connector Mount |
| Number of Bands | 7 |
| Power - Max [Max] | 5 W |
| RF Family/Standard | Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TG.42 Series

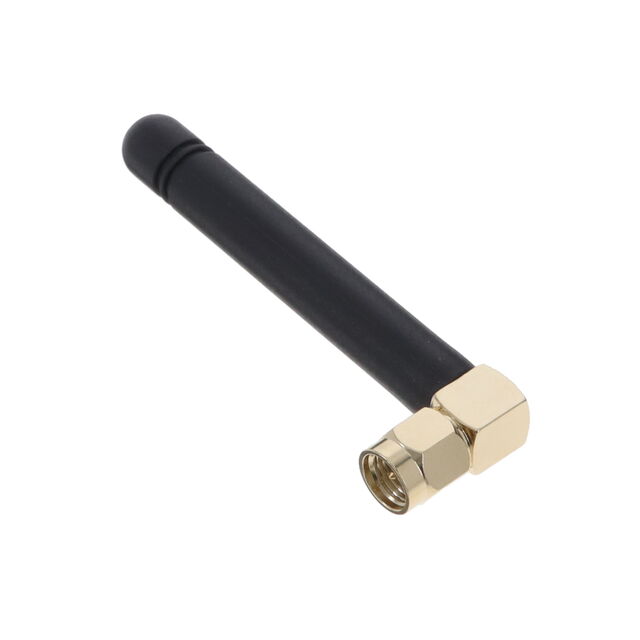

RF ANTENNA LTE Whip, Right Angle SMA Male Connector Mount
