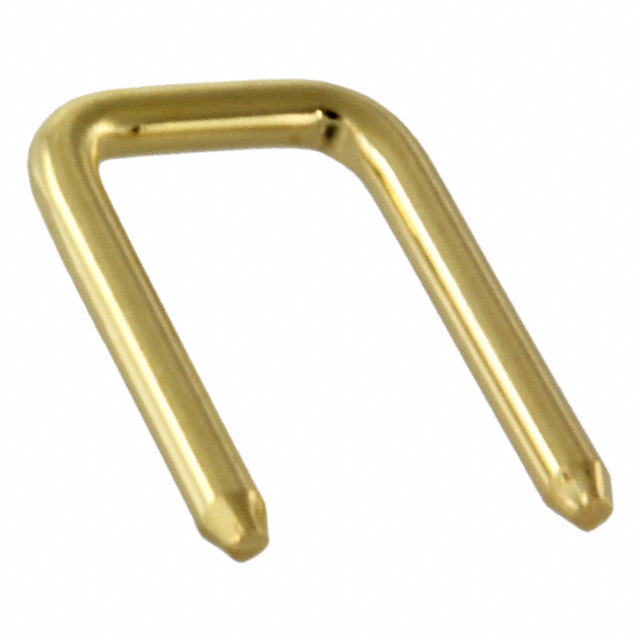

D3080-05

Active

Harwin Inc.

INTERCONNECTION DEVICE, LEAD FREE

Search across all available documentation for this part.

Active

Harwin Inc.

INTERCONNECTION DEVICE, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	D3080-05

Contact Finish	Gold
Contact Finish Thickness	Flash
Gender	Male Pins
Height [z]	0.359 "
Height [z]	9.13 mm
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Type	Non-Insulated

Part	Height [z]	Height [z]	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type	Contact Finish	Contact Finish Thickness
Harwin Inc. D3080-46	0.359 "	9.13 mm	Male Pins	2.54 µm	100 µin	0.2 in	5.08 mm	1 x 2	2	Non-Insulated	Tin
Harwin Inc. D3080-05	0.359 "	9.13 mm	Male Pins			0.2 in	5.08 mm	1 x 2	2	Non-Insulated	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Non-Insulated 0.200" (5.08mm) Gold
