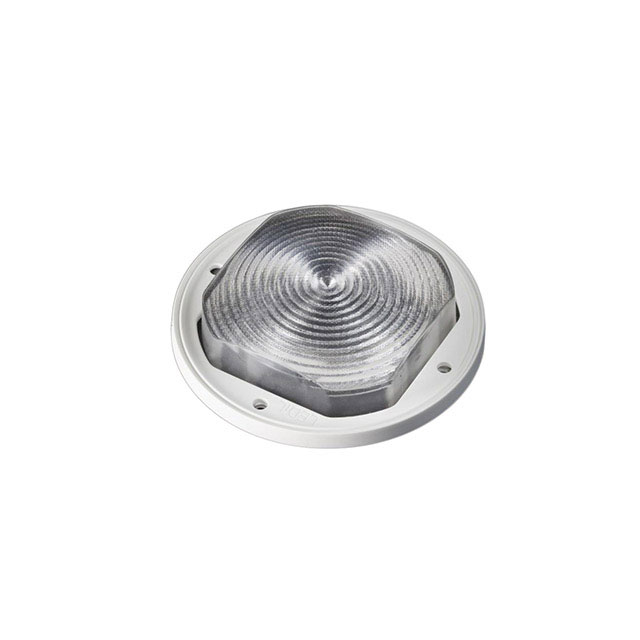

FN15188_STELLA-FRESNEL

Active

LEDiL

PACK ROUND 1 POS 90MM (D) 23MM(H)/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

PACK ROUND 1 POS 90MM (D) 23MM(H)/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	FN15188_STELLA-FRESNEL

Color	Clear
For Use With/Related Manufacturer	Osram, Luminus, Citizen, Seoul, Lumileds, Bridgelux, Cree
Lens Size [diameter]	90 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Material	Silicone
Number of LEDs	1
Optical Pattern	Fresnel Ring
Type	Lens
Viewing Angle [Max]	39 °
Viewing Angle [Min]	17 °

Part	Type	Color	Material	Lens Style	Optical Pattern	Lens Transparency	Lens Size [diameter]	For Use With/Related Manufacturer	Viewing Angle [Min]	Viewing Angle [Max]	Number of LEDs
LEDiL FN15188_STELLA-FRESNEL	Lens	Clear	Silicone	Round with Domed Top	Fresnel Ring	Diffused	90 mm	Bridgelux Citizen Cree Lumileds Luminus Osram Seoul	17 °	39 °	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Clear 17° ~ 39° Fresnel Ring
