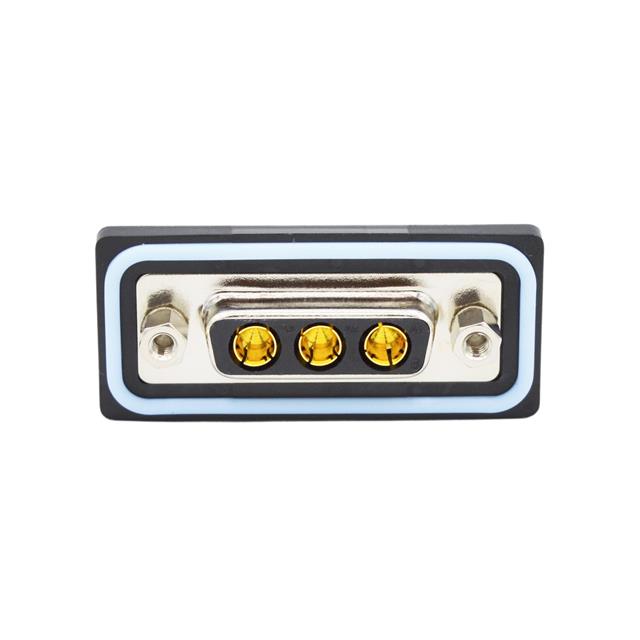

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +3

CDFR3W3213L262

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, IP67, NANOOK SERIES, DA-3W3, RECEPTACLE, 3 CONTACTS, 3 POWER

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFR3W3213L262

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock, Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder

CDFR3W3 Series

Part	Contact Type	Features	Termination	Number of Rows	Flange Feature	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Number of Positions	Material Flammability Rating	Dielectric Material	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Connector Type	Ingress Protection	Contact Material	Contact Finish Thickness
MH Connectors CDFR3W3113L412	Power	Grounding Indents	Solder	1	Female Screwlock (4-40) Mating Side	5 A 20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass
MH Connectors CDFR3W3113L261	Power	Board Lock Grounding Indents Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C			Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass	Flash
MH Connectors CDFR3W3113L211	Power	Grounding Indents	Solder	1	Female Screwlock (4-40) Mating Side	20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C			Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass	Flash
MH Connectors CDFR3W3213L461	Power	Board Lock Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	40 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C			Panel Mount Right Angle Through Hole	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Brass	Flash
MH Connectors CDFR3W3213L262	Power	Board Lock Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Brass
MH Connectors CDFR3W3113L462	Power	Board Lock Grounding Indents Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	5 A 20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass
MH Connectors CDFR3W3213L462	Power	Board Lock Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	5 A 20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Brass
MH Connectors CDFR3W3213L261	Power	Board Lock Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C			Panel Mount Right Angle Through Hole	Gold	Receptacle Female Sockets	IP67 - Dust Tight Waterproof	Brass	Flash
MH Connectors CDFR3W3113L212	Power	Grounding Indents	Solder	1	Female Screwlock (4-40) Mating Side	20 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass
MH Connectors CDFR3W3113L461	Power	Board Lock Grounding Indents Mounting Brackets	Solder	1	Female Screwlock (4-40) Mating Side	40 A	Combo D-Sub	2 (DA A)	3W3	Black	3	UL94 V-0	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	-25 °C	85 °C			Panel Mount Right Angle Through Hole	Gold	Male Pins Plug	IP67 - Dust Tight Waterproof	Brass	Flash
