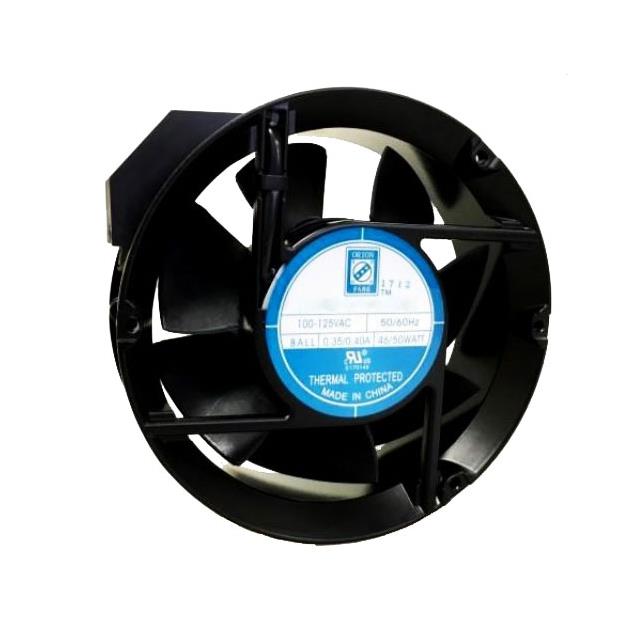

OA172AP11-1TBXC

Active

Orion Fans

FAN AXIAL 172X51MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

OA172AP11-1TBXC

Active

Orion Fans

FAN AXIAL 172X51MM 115VAC TERM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172AP11-1TBXC

Air Flow	8.4 mł/min
Air Flow	300 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	61 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
RPM	3300 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	194.3 Pa
Static Pressure	0.78 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	125 VAC
Voltage Range [Min]	100 VAC
Weight	997.9 g
Weight	2.2 lbs
Width [y]	51 mm

OA172AP Series

Part	Material - Frame	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Voltage - Rated	Width [y]	Power (Watts)	Approval Agency	RPM	Size / Dimension	Size / Dimension [diameter]	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Termination	Air Flow	Air Flow	Fan Type	Material - Blade	Weight	Weight	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Features
Orion Fans OA172AP-11-3TB	Aluminum	33 dB(A)	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	16 W	cURus TUV	1800 RPM	Round	172 mm	107.1 Pa	0.43 in H2O	80 VAC	130 VAC	Ball	2 Terminals	3.78 mł/min	135 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1TB	Aluminum	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	230 VAC	51 mm	35 W	cURus TUV	3200 RPM	Round	172 mm	174.4 Pa	0.7 in H2O	160 VAC	260 VAC	Ball	2 Terminals	6.58 m³/min	235 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1TB1855	Aluminum	59 dB(A)					50000 Hrs	230 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O			Ball	2 Terminals	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP-22-1WB1855	Aluminum	59 dB(A)					50000 Hrs	230 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O			Ball	2 Wire Leads	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP-11-2TB	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	20 W	cURus TUV	2400 RPM	Round	172 mm	122.1 Pa	0.49 in H2O	80 VAC	130 VAC	Ball	2 Terminals	4.76 m³/min	170 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-11-2WB	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	20 W	cURus TUV	2400 RPM	Round	172 mm	122.1 Pa	0.49 in H2O	80 VAC	130 VAC	Ball	2 Wire Leads	4.76 m³/min	170 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1WB	Aluminum	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	230 VAC	51 mm	35 W	cURus TUV	3200 RPM	Round	172 mm	174.4 Pa	0.7 in H2O	160 VAC	260 VAC	Ball	2 Wire Leads	6.58 m³/min	235 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-11-1WB1855	Aluminum	59 dB(A)					50000 Hrs	115 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O	100 VAC	120 VAC	Ball	2 Wire Leads	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP11-1TBXC	Aluminum	61 dB(A)	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	50 W	cURus TUV	3300 RPM	Rectangular/Rounded		194.3 Pa	0.78 in H2O	100 VAC	125 VAC	Ball	2 Terminals	8.4 mł/min	300 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	997.9 g	2.2 lbs		150 mm	172 mm	Capacitor
Orion Fans OA172AP-11-1TB1855	Aluminum	59 dB(A)					50000 Hrs	115 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O	100 VAC	120 VAC	Ball	2 Terminals	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.11
		12	$ 45.77
		36	$ 44.03
		60	$ 41.13
		108	$ 37.95
		252	$ 37.37

Description

General part information

OA172AP Series

Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 300.0 CFM (8.40mł/min) 2 Terminals

Documents

Technical documentation and resources

No documents available
