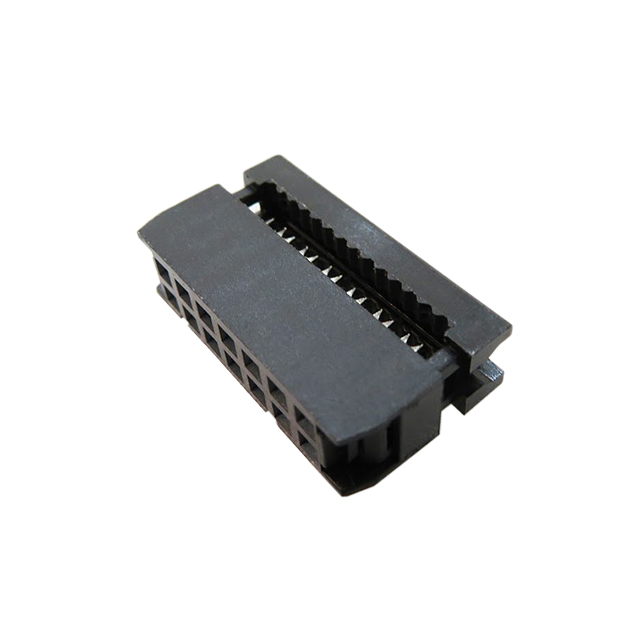

FCS-14-SG

Active

Adam Tech

SOCKET FLAT CABLE IDC 14P 2.54MM

Search across all available documentation for this part.

Active

Adam Tech

SOCKET FLAT CABLE IDC 14P 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Fastening Type	Contact Type	Contact Finish	Mounting Type	Cable Termination	Pitch [x]	Pitch [x]	Number of Positions	Color	Number of Rows	Row Spacing [x]	Row Spacing	Features	Wire Type	Contact Finish Thickness
Adam Tech FCS-64-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	64	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-34-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	34	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-12-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	12	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-50-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	50	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-44-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	44	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-14-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	14	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-30-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	30	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
Adam Tech FCS-26-SG	Socket	Push-Pull	Female Socket	Gold	Free Hanging (In-Line)	IDC	2.54 mm	0.1 in	26	Black	2	0.1 in	2.54 mm	Feed Through Polarizing Key	Ribbon Cable	Flash
