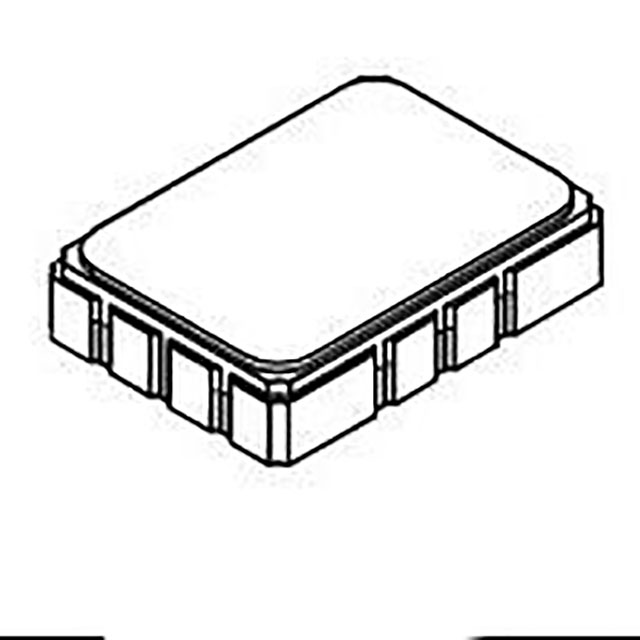

SF2367B
ActiveRFMi
FILTER, SAW, 169.437 MHZ, 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2367B
ActiveRFMi
FILTER, SAW, 169.437 MHZ, 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2367B |
|---|---|
| Applications | General Purpose |
| Bandwidth | 100 kHz |
| Frequency - Center | 169.4375 MHz |
| Height (Max) [Max] | 0.071 in |
| Height (Max) [Max] | 1.8 mm |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.04 | |
| Tape & Reel (TR) | 1 | $ 2.77 | ||
| 1 | $ 2.52 | |||
Description
General part information
SF2367 Series
169.4375MHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 3dB 100kHz Bandwidth 10-SMD, No Lead
