4282-1-0200-02-SP

Active

CnC Tech, LLC

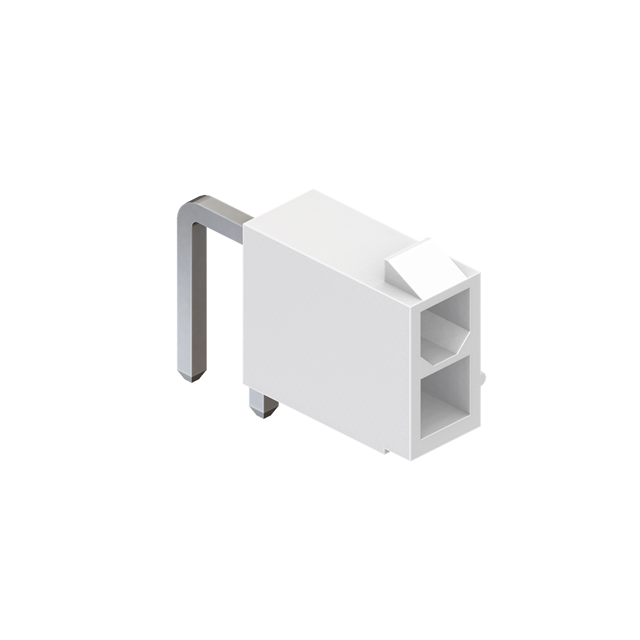

CONN WIRE TO BOARD M 2 POS 4.2MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4282-1-0200-02-SP

Active

CnC Tech, LLC

CONN WIRE TO BOARD M 2 POS 4.2MM SOLDER RA SIDE ENTRY THRU-HOLE TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4282-1-0200-02-SP

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	9 A
Fastening Type	Locking Ramp
Insulation Color	White
Insulation Height	10 mm
Insulation Height	0.394 "
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

4282-1 Series

Part	Insulation Height	Insulation Height	Shrouding	Style	Connector Type	Insulation Material	Material Flammability Rating	Termination	Mounting Type	Voltage Rating	Fastening Type	Number of Positions Loaded	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions
CnC Tech, LLC 4282-1-0200-20-SP	10 mm	0.394 "	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole Right Angle	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in	White	2	4.2 mm	0.165 in	Male Pin	3.5 mm	0.138 in	Tin	20
CnC Tech, LLC 4282-1-0200-22-SP	10 mm	0.394 "	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole Right Angle	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in	White	2	4.2 mm	0.165 in	Male Pin	3.5 mm	0.138 in	Tin	22 positions
CnC Tech, LLC 4282-1-0100-04-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	4
CnC Tech, LLC 4282-1-0100-08-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	8
CnC Tech, LLC 4282-1-0200-08-SP	10 mm	0.394 "	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole Right Angle	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in	White	2	4.2 mm	0.165 in	Male Pin	3.5 mm	0.138 in	Tin	8
CnC Tech, LLC 4282-1-0100-12-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	12
CnC Tech, LLC 4282-1-0100-14-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	14
CnC Tech, LLC 4282-1-0100-24-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	24
CnC Tech, LLC 4282-1-0100-06-SP	12.8 mm	0.504 in	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in		2	4.2 mm	0.165 in	Male Pin	4 mm	0.157 in	Tin	6
CnC Tech, LLC 4282-1-0200-02-SP	10 mm	0.394 "	Shrouded - 4 Wall	Board to Cable/Wire	Header	Polyamide (PA66) Nylon 6/6	UL94 V-0	Solder	Through Hole Right Angle	600 VAC	Locking Ramp	All	Brass	-40 °C	105 ░C	9 A	Square	4.2 mm	0.165 in	White	2			Male Pin	3.5 mm	0.138 in	Tin	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.41
		10	$ 0.35
		80	$ 0.27
		440	$ 0.23
		1872	$ 0.18
		5616	$ 0.17
		11232	$ 0.16

Description

General part information

4282-1 Series

Connector Header Through Hole, Right Angle 2 position
